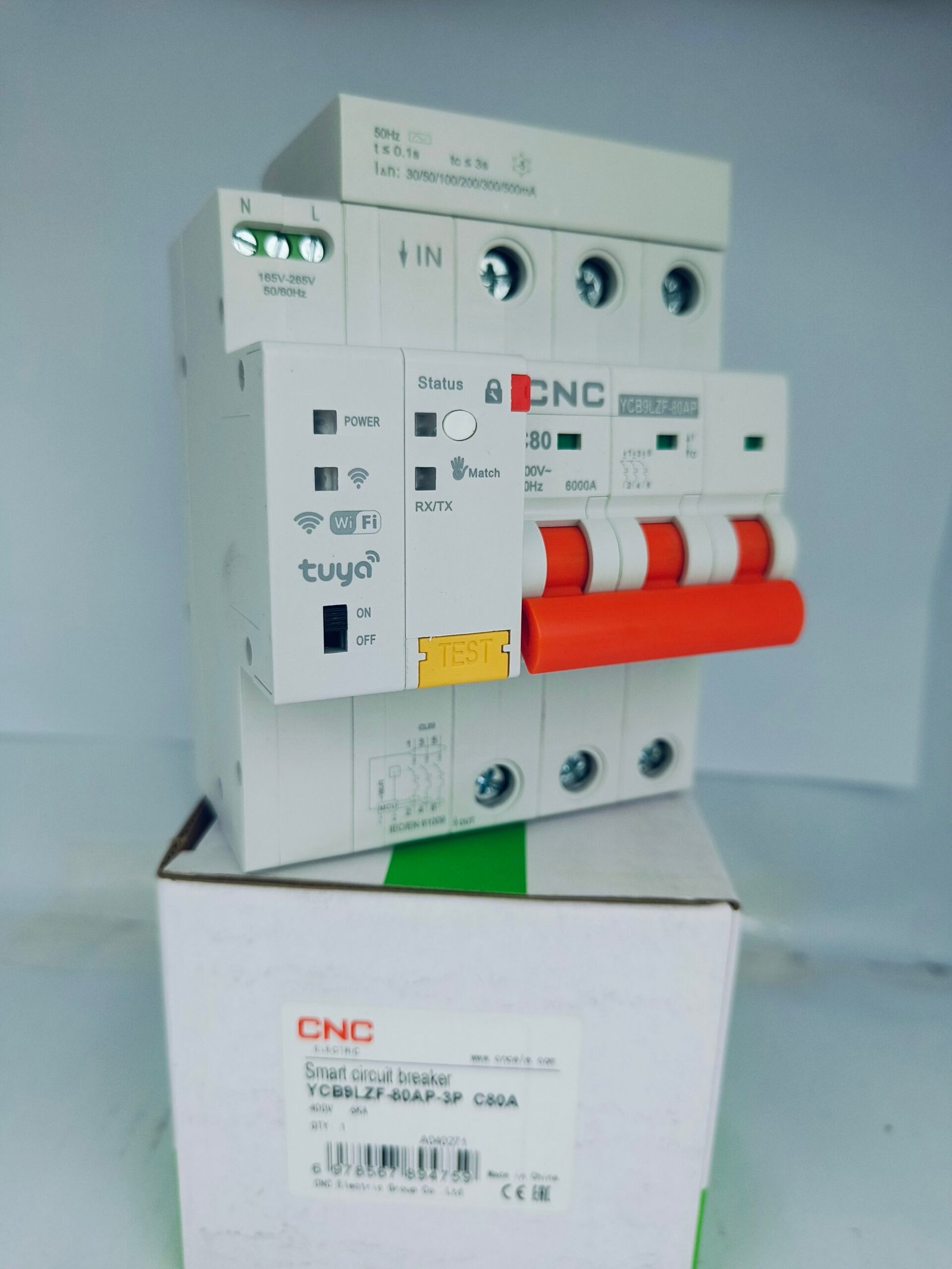

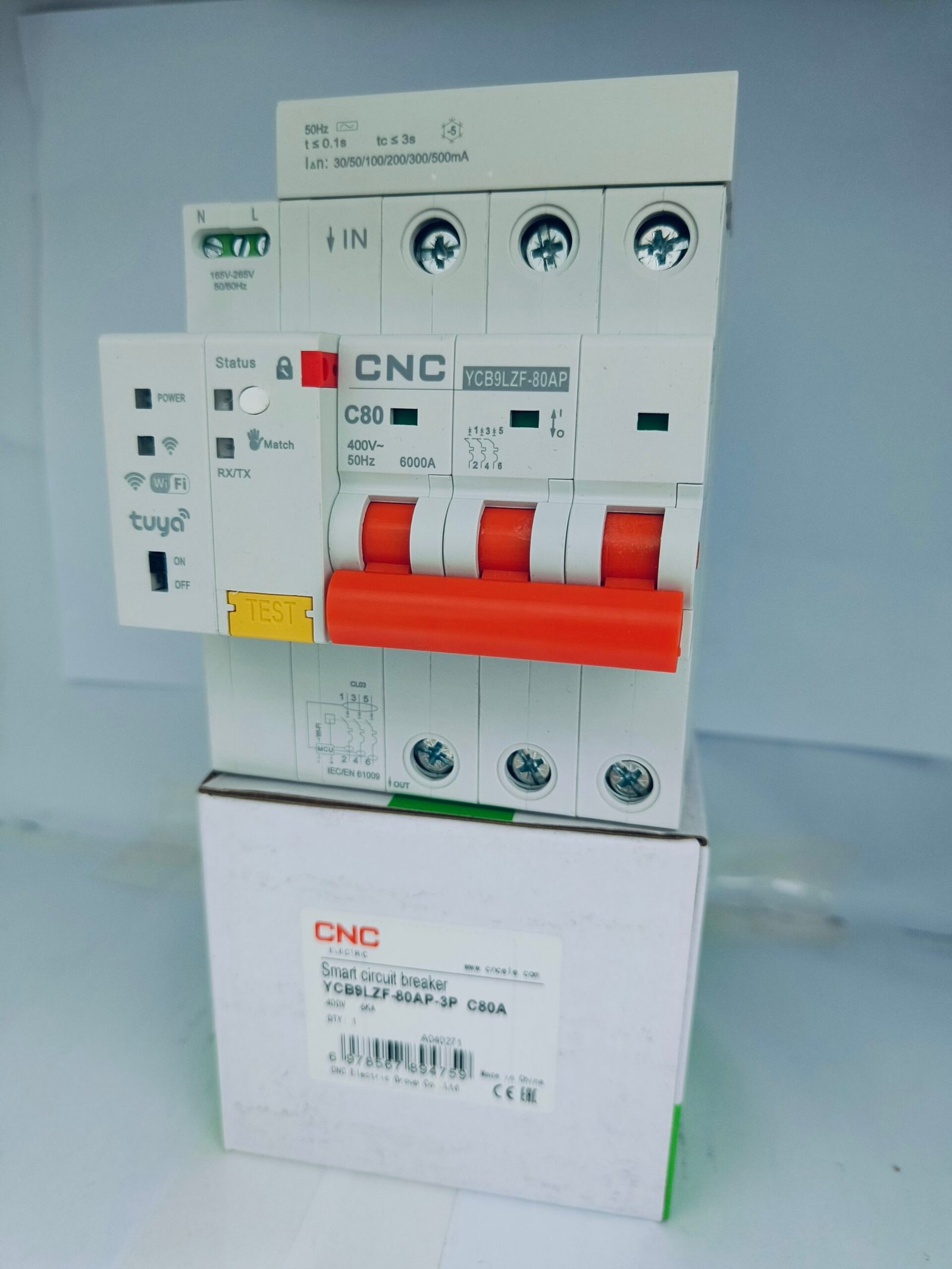

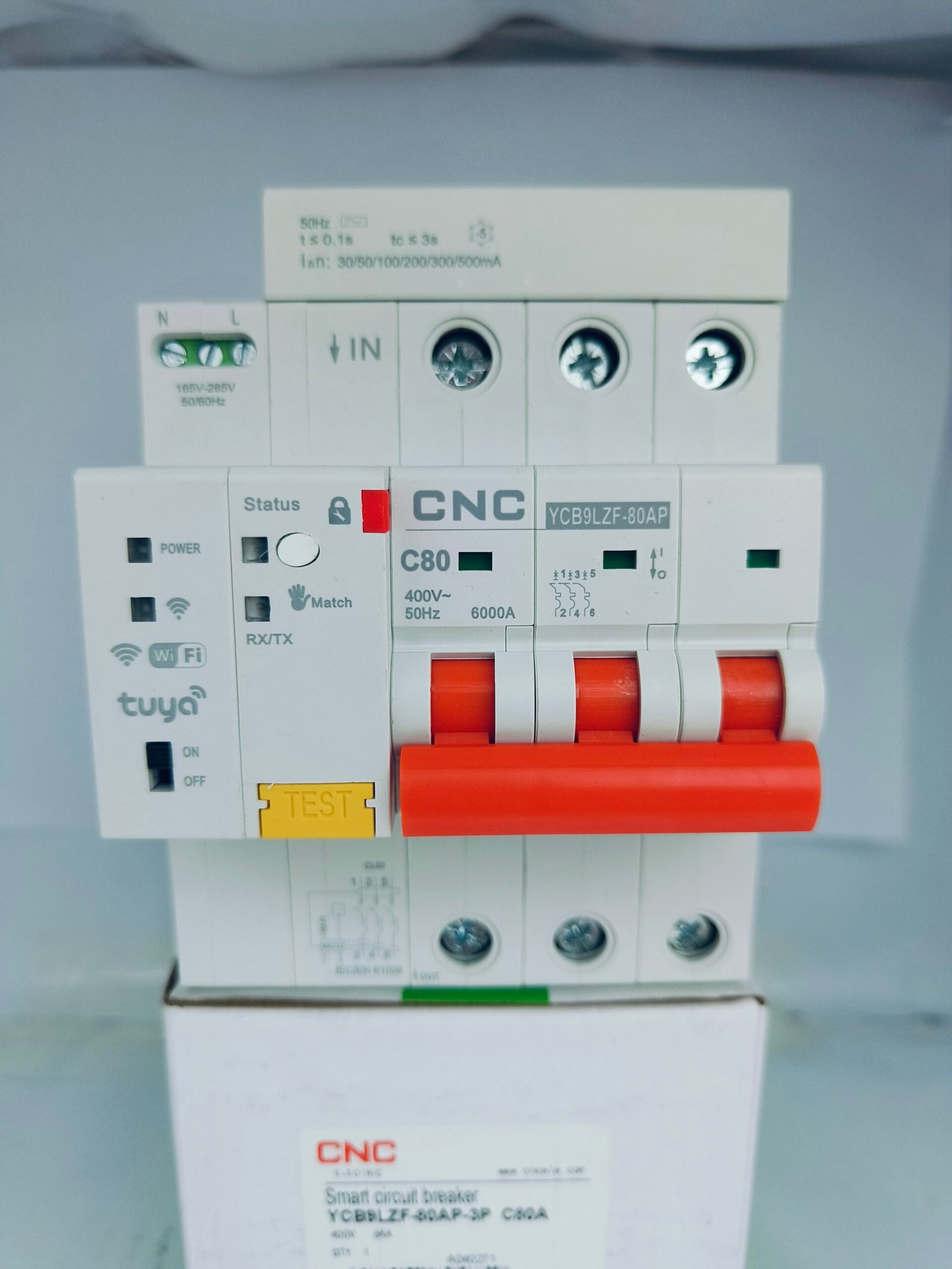

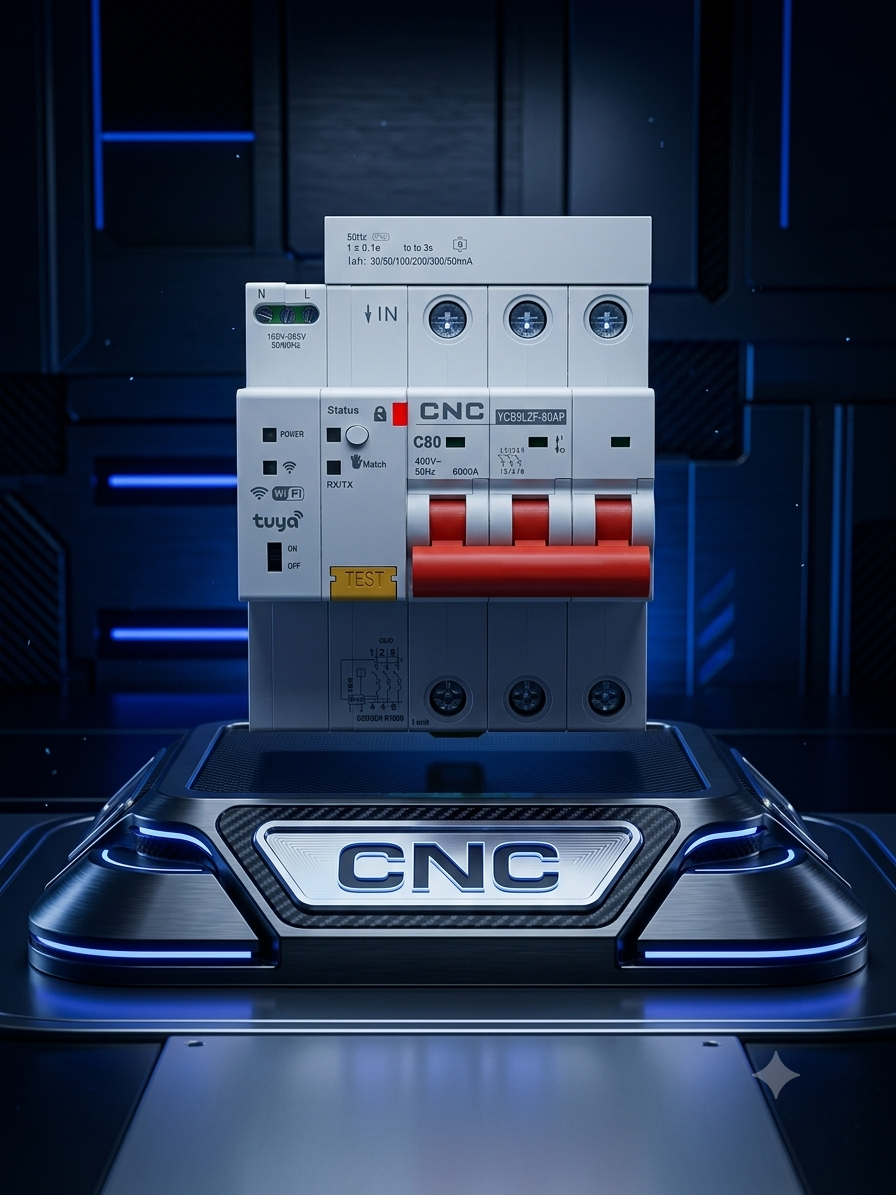

Smart Advance Circuit Breaker (Three Phase 80A)
Smart Advance Circuit Breaker (Three Phase 80A) - Image 2
Smart Advance Circuit Breaker (Three Phase 80A) - Image 3
Smart Advance Circuit Breaker (Three Phase 80A) - Image 4

Smart Advance Circuit Breaker (Three Phase 80A)

Original price was: 11,000.00৳ .Current price is: 10,500.00৳ .

This series IoT miniature circuit breakers are used in low-voltage terminal distribution networks in industrial, commercial, civil and infrastructure fields in indoor buildings and similar places. IoT miniature circuit breakers are used with intelligent gateways to monitor key electrical parameters of power lines, such as voltage, current, power, temperature, leakage, energy consumption, etc. in real time, and have functions such as remote control, abnormal warning, accident tripping alarm, power metering statistics, and fault location.

Function parameters

NO. Protection
Function		 Trip Type YCB9LZF-80AP
2P 3P 4P		 Parameter Setting Setting Value Factory
Default Value
1 Overvoltage
Protection		 OffIAlarm/
Trip		 Trip Trip Trip Overvoltage Setting 250-350V 280V
Overvoltage Delay 0-10S 3s
2 Undervoltage
Protection		 Off/Alarm/
Trip		 Alam Alam Alam Undervoltage Setting 110-200V 165V
Undervoltage Delay 0-10S 3s
3 Phase Loss
Protection		 OffAlarm/
Trip		 / Off Off Phase Loss Setting 10-100V 30V
Phsase Loss Delay 0-10s 5s
4 Overload
Protection		 OffAlarm/
Trip		 Trip Trip Trip Overload Setting 0.6ln-In In
Overload Delay 0-10s 3s
5 High
Temperature
Protection		 OffAlarm/
Trip		 Alam Alam Alam High Temperature Setting 60-100℃ 80℃
High Temperature Delay 0-10s 5s
6 Early Warning
Function		 Off/On On On On Early Warning Proportion 90-100% 95%
7 Alarm Enable Off/On On On On —– —–
8 Overpower
Protection		 OffAlarm/
Trip		 Off Off Off Overpower Value 50W-50Kw 2Kw
Overpower Delay 0-10s 5s
9 Underpower
Protection		 Off/Alarm/
Trip		 Off Off Off Underpower Value 50W-50Kw 2Kw
Underpower Delay 0-10s 5s
10 Timing Control Off/Setting Off Off Off —– —– —–
11 Automatic
Closing		 Off/On Off Off Off —– —– —–
12 Leakage
Protection		 Off/Alarm/
Trip		 Trip Trip Trip Leakage setting value 30~500mA 100mA
No driving time -/0.06/0.1/0.2s
13 Manual-automatic
Integrated Control		 Yes Yes Yes —– —– —–
14 Mechanical Maintenance
Lock		 Yes Yes Yes —– —– —–
·“”means    no    function
·“—”means   no   parameter
·Trip   type   notes:
Off:turn off this function,when the protection action value is reached,the product does not protect;Alarm:when the protection action value is
reached,the product only alarms but does not trip;
Trip:when the protection action value is reached, the product trips.





Technical Data

ltem Product Model
YCB9LZF-80
Compliance Standard IEC/EN60898-1, IEC/EN61009-1
Number of Poles 3P
Rated Voltage Single -phase AC230V, Three-phase AC400V 50/60Hz
Rated Current 80A
Tripping Type Type C (other types can be customized)
Short-circuit Breaking
Capacity		 Common type:Icu=Ics=6kA; H type:Icu=10kA, Ics=7.5KA
Mechanical Life For 1P/2P>20000 times,for 3P,4P>12000 times
Electrical Life >6000 times
Closing Time <1.5s
Opening Time <1.0s
Measurement Accuracy 1.0
Leakage Tripping Value
Category:

Description

This series IoT miniature circuit breakers are used in low-voltage terminal distribution networks in industrial, commercial, civil and infrastructure fields in indoor buildings and similar places. IoT miniature circuit breakers are used with intelligent gateways to monitor key electrical parameters of power lines, such as voltage, current, power, temperature, leakage, energy consumption, etc. in real time, and have functions such as remote control, abnormal warning, accident tripping alarm, power metering statistics, and fault location.
