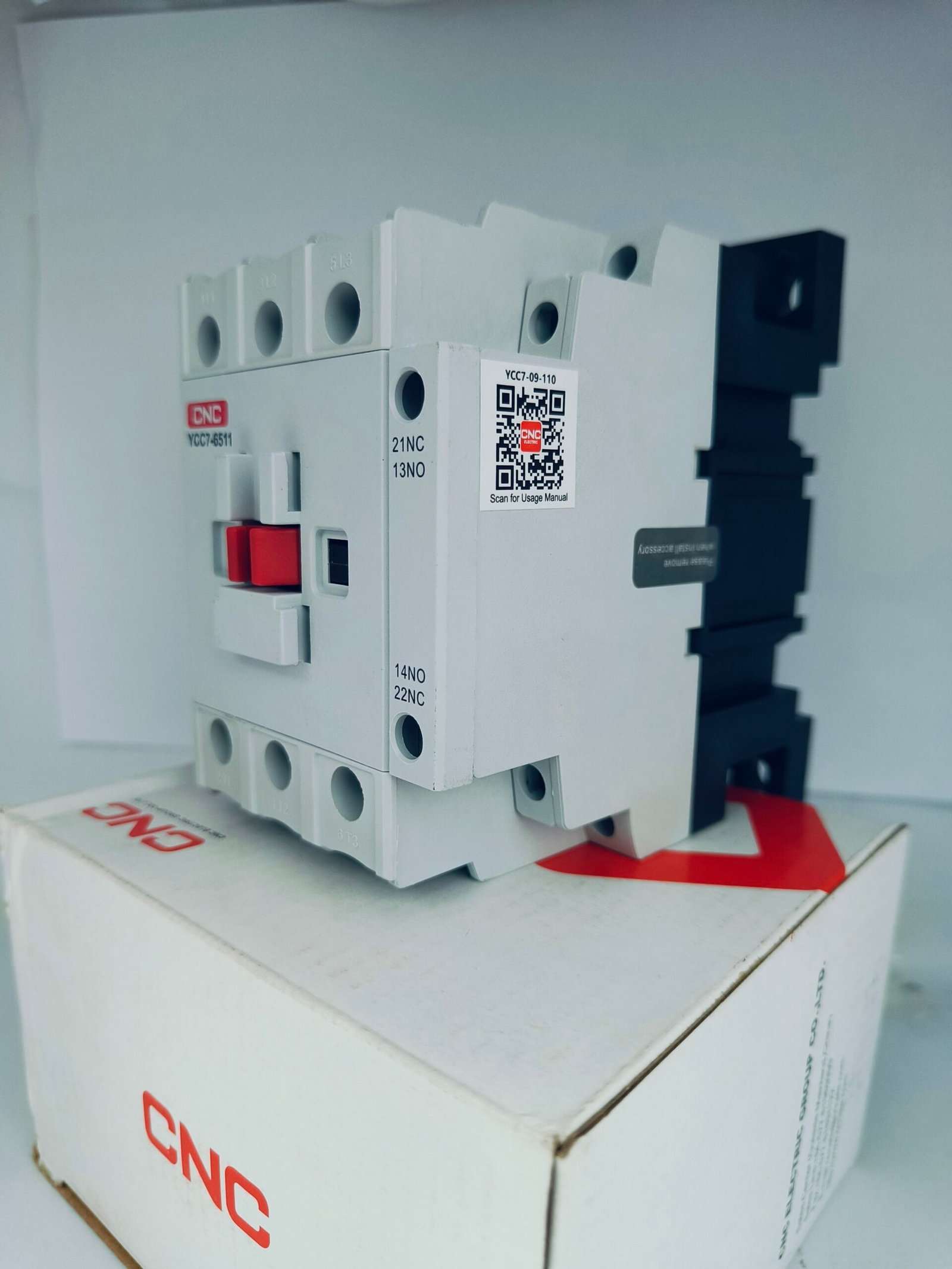

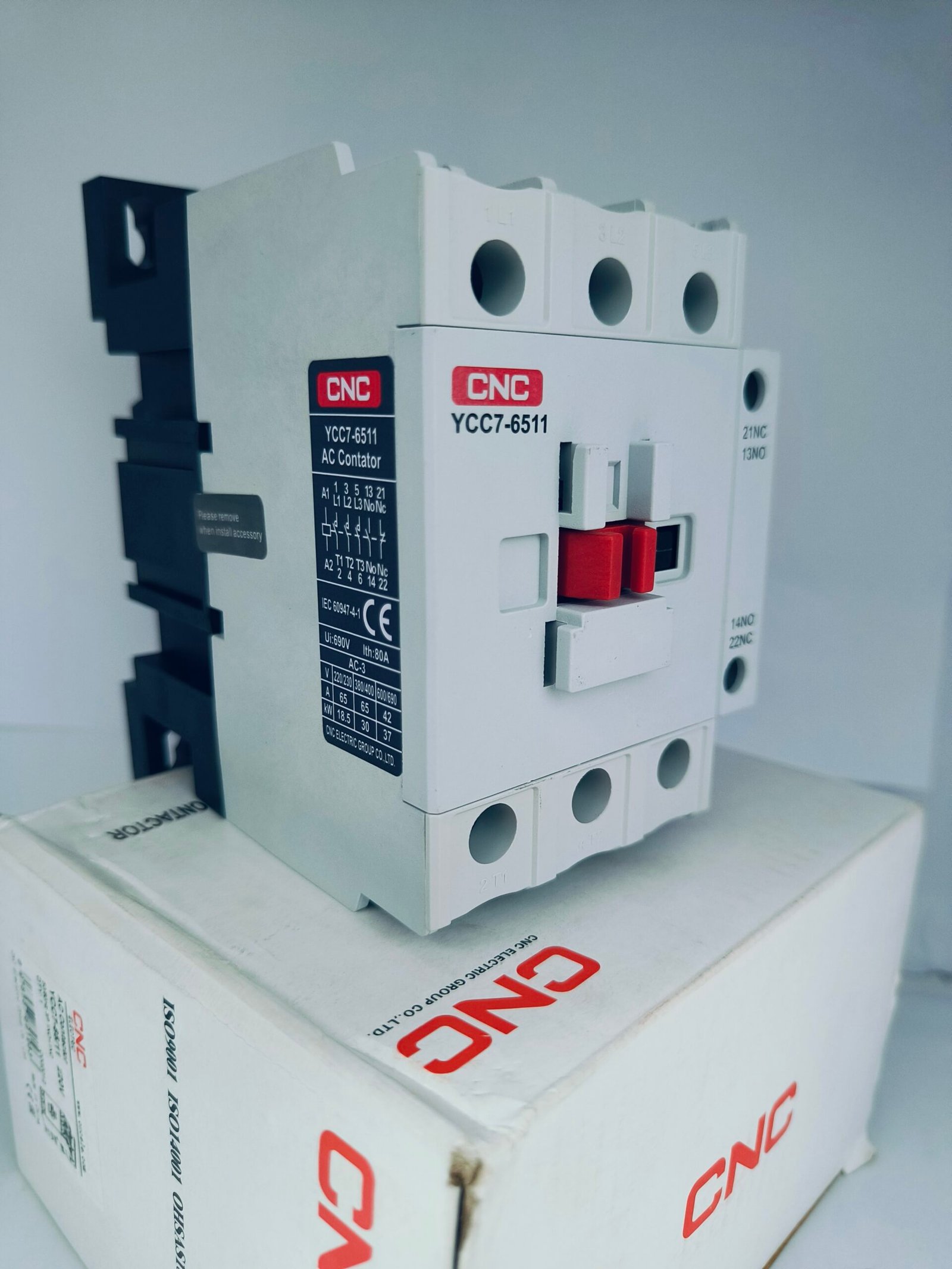

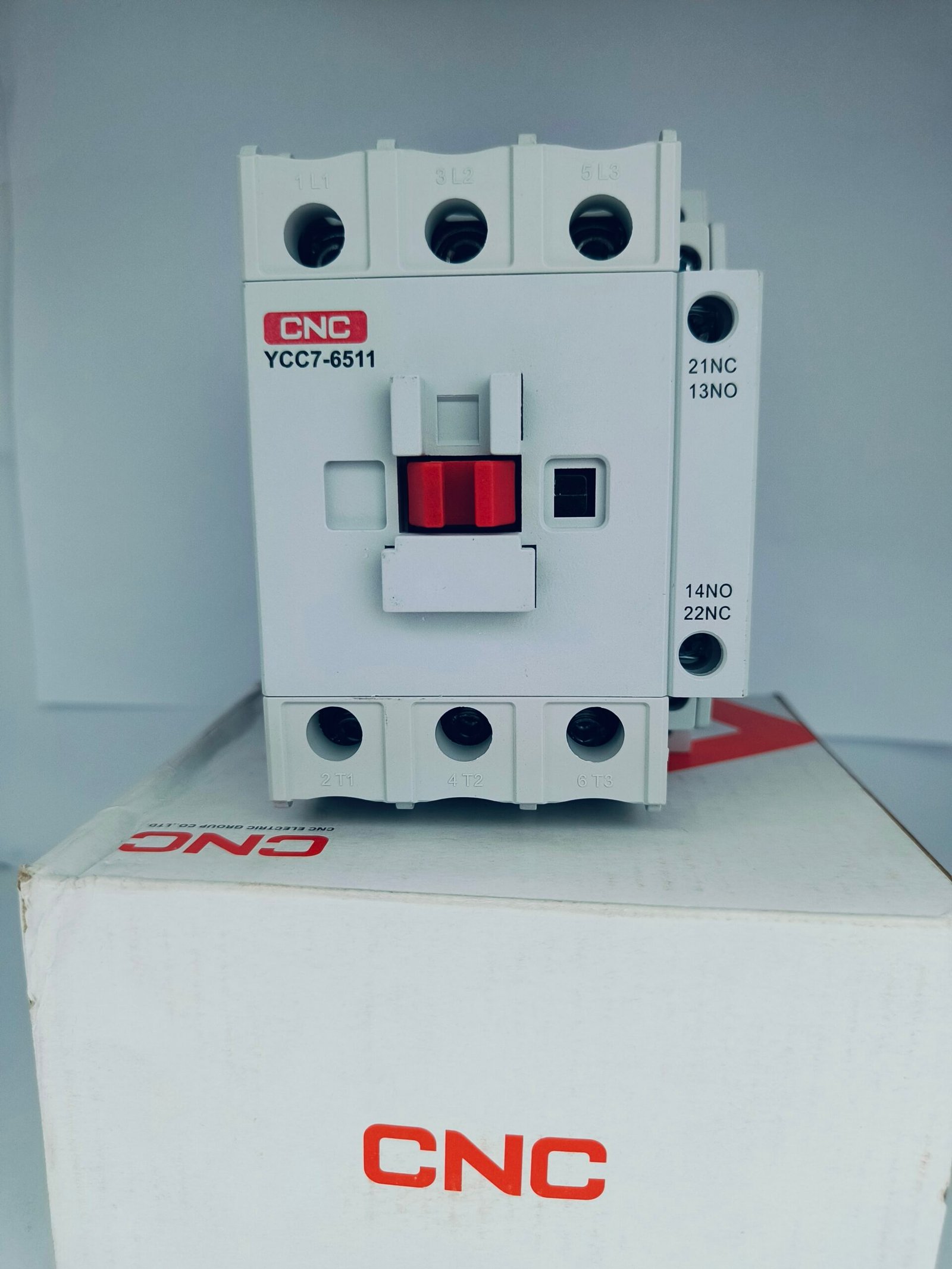

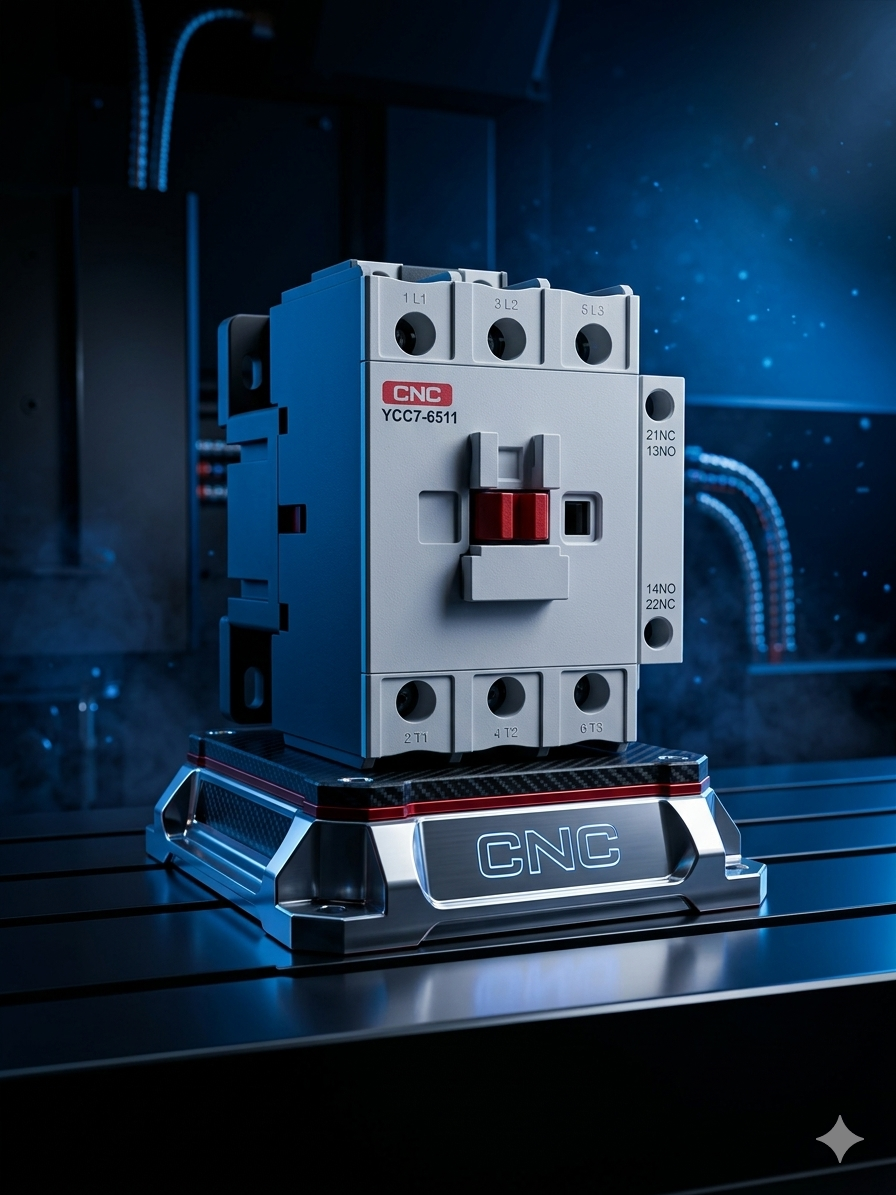

AC Contactor 65/11 220V 3P 1NO+1NC
Original price was: 5,500.00৳ .5,200.00৳ Current price is: 5,200.00৳ .
The YCC7 Series NO NC Contactor is a versatile, industrial-grade solution for motor control, designed to handle frequent starting/stopping of AC motors and remote circuit switching. Built to IEC 60947-1/4-1 standards, it combines robust performance with flexible customization, making it ideal for applications from small machinery to large-scale industrial systems. With rated currents from 6A to 630A and voltages up to 690V, the YCC7 series supports diverse setups—from 3P/4P configurations to auxiliary contact expansions for advanced control.
Operating conditions
| Type | Operating and Installation Conditions |
| Installation category | Ⅲ |
| Pollution level | 3 |
| Protection degree | YCC7-M06-16A:IP20,YCC7-09~38:IP20;YCC7-40~95:YCC7-110 IP10,YCC7-120-630 IP10 |
| Ambient temperature | limit of temperature:-35°℃~+70℃, normal temperature:-5℃~+40℃, The average no more than +35℃ within 24 hours. |
| Altitude | ≤2000m |
| Ambient temperature | The maximum temperature is 70 degrees,the relative humidity of the air does not exceed 50%,and the temperature below 50%can allow higher relative humidity.If the temperature is 20℃,the air relative humidity could up to 90%, Special measures should be taken for occasional condensation due to humidity changes. |
| Installation position | Inclination between installation surface and vertical surface should not exceed±5° |
| Shock vibration | Products should be installed and used without significant shake,shock and vibration. |
| No. | Three-phase asynchronous motor power KW(AC-3) |
Max Operating Current(AC-3380V400V) |
Contactor Model |
The number of auxiliary products | |||
| 220V/230V | 380V/400V | 380V/400V | Normally Open(NO) | Normally Closed(NC) | |||
| 1 | 1.5 | 2.2 | 3 | 6 | YCC7-M0610 | 1 | 0 |
| 2 | 1.5 | 2.2 | 3 | 6 | YCC7-M0601 | 0 | 1 |
| 3 | 2.2 | 4 | 4 | 9 | YCC7-M0910 | 1 | 0 |
| 4 | 2.2 | 4 | 4 | 9 | YCC7-M0901 | 0 | 1 |
| 5 | 2.2 | 4 | 5.5 | 9 | YCC7-09 | 1 | 1 |
| 6 | 3 | 5.5 | 4 | 12 | YCC7-M1210 | 1 | 0 |
| 7 | 3 | 5.5 | 4 | 12 | YCC7-M1201 | 0 | 1 |
| 8 | 3 | 5.5 | 7.5 | 12 | YCC7-12 | 1 | 1 |
| 9 | 3 | 7.5 | 7.5 | 16 | YCC7-M1610 | 1 | 0 |
| 10 | 3 | 7.5 | 7.5 | 16 | YCC7-M1601 | 0 | 1 |
| 11 | 4 | 7.5 | 10 | 18 | YCC7-18 | 1 | 1 |
| 12 | 5.5 | 11 | 15 | 25 | YCC7-25 | 1 | 1 |
| 13 | 7.5 | 15 | 18.5 | 32 | YCC7-32 | 1 | 1 |
| 14 | 11 | 18.5 | 30 | 40 | YCC7-40 | 1 | 1 |
| 15 | 15 | 22 | 37 | 50 | YCC7-50 | 1 | 1 |
| 16 | 18.5 | 30 | 37 | 65 | YCC7-65 | 1 | 1 |
| 17 | 22 | 37 | 37 | 75 | YCC7-80 | 1 | 1 |
| 18 | 22 | 37 | 45 | 85 | YCC7-95 | 1 | 1 |
| 19 | 25 | 45 | 45 | 100 | YCC7-110 | 1 | 1 |
| 20 | 37 | 55 | 80 | 120 | YCC7-120 | 2 | 2 |
| 21 | 45 | 75 | 100 | 160 | YCC7-160 | 2 | 2 |
| 22 | 55 | 90 | 100 | 185 | YCC7-185 | 2 | 2 |
| 23 | 63 | 110 | 110 | 225 | YCC7-225 | 2 | 2 |
| 24 | 75 | 132 | 160 | 265 | YCC7-265 | 2 | 2 |
| 25 | 90 | 160 | 200 | 330 | YCC7-330 | 2 | 2 |
| 26 | 132 | 200 | 300 | 400 | YCC7-400 | 2 | 2 |
| 27 | 160 | 250 | 335 | 500 | YCC7-500 | 2 | 2 |
| 28 | 200 | 335 | 350 | 630 | YCC7-630 | 2 | 2 |
Techniacal data
| YCC7 Specifications | ||||||
| Main circuit characteristic | ||||||
| Type | YCC7-M06 | YCC7-M09 | YCC7-M12 | YCC7-M16 | ||
| Poles | ||||||
| 3P,4P | ||||||
| Rated insulation voltage(Ui) | V | 690 | ||||
| Rated operating voltage(Ue) | V | 380/400,660/690 | ||||
| Rated thermal current(Ith),AC-1 | 20 | 20 | 20 | 20 | ||
| Rated operation current(le)Rated |
AC-3,380/400V | A | 6 | 9 | 12 | 16 |
| AC-3,660/690V | A | 3.8 | 4.9 | 4.9 | 4.9 | |
| AC-4,380/400V | A | 6 | 9 | 9 | 12 | |
| AC-4,660/690V | A | 3.8 | 4.9 | 4.9 | 4.9 | |
| operational power(Pe) |
AC-3,380/400V | kW | 2.2 | 4 | 5.5 | 7.5 |
| AC-3,660/690V | kW | 3 | 4 | 4 | 4 | |
| Mechanical life | 10000 times |
1200 | ||||
| Electrical life | AC-3 | 12 | ||||
| AC-4 | See electrical life curve | |||||
| Frequency of operation |
AC-3 | times/ hour |
1200 | |||
| AC-4 | 300 | |||||
| Connecting capability of main circuit terminal | ||||||
| Flexible wire | wire | mm² | 1…4 | |||
| No terminal | 2 wire | mm² | 1…4 | |||
| Flexible wire | 1 wire | mm² | 1…4 | |||
| With terminals | 2 wire | mm² | 1..2.5 | |||
| Hard wire | 1 wire | mm² | 1…4 | |||
| No terminal | 2 wire | mm² | 1…4 | |||
| Fastening torque | N ·m | 1.2 | ||||
| Coil | ||||||
| Rated control voltage(Us) |
50Hz | V | 24,36,48,110,127,220,380,415 | |||
| 50/60Hz | V | 24,36,48,110,127,220,380,415 | ||||
| DC | V | 12,24,36,48,110,127,220 | ||||
| Allowed control circuit voltage(Us) |
Operation | V | Installation inclination angle ±22.5°:85%~110%Us;Installation inclination angle±5°:70%~120% | |||
| Release(AC) | V | Installation inclination angle±22.5°:20%~75%Us;Installation inclination angle±5°:20%~60% | ||||
| Release(DC) | V | Installation inclination angle ±22.5°:10%~75%Us;Installation inclination angle±5°:10%~60% | ||||
| Power consumption of coil |
Actuation | VA | 20-40 | |||
| Keep | VA | 9.5 | ||||
| Consumption | W | 1-3 | ||||
| Auxiliary contacts | ||||||
| Auxiliary contacts specification | A | 1NO+1NC | ||||
| Rated thermal current(Ith) | A | 10 | ||||
| Rated operating voltage(Ue) |
AC | V | 380/400 | |||
| DC | V | 220 | ||||
| Rated control capacit |
AC-15 | VA | Ue/le:AC380V/400V/1.5A Ith:10A | |||
| DC-13 | W | Ue/le: DC220V/0.3A | ||||
| Certification | CCC, CE, TUV,CB | |||||
Related products
-
Sale!
AC Contactors (YCCH6-32/31)
Original price was: 2,000.00৳ .1,600.00৳ Current price is: 1,600.00৳ . Add to cart Buy now -
Sale!

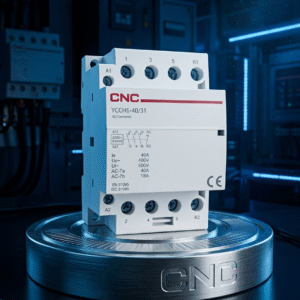

AC Contactors (YCCH6-40/31)
