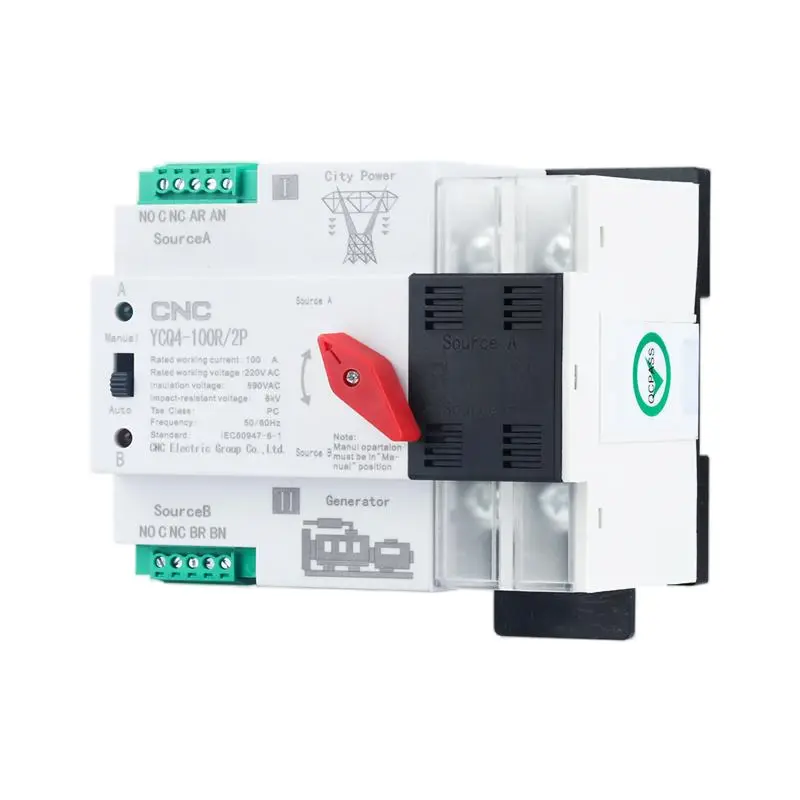

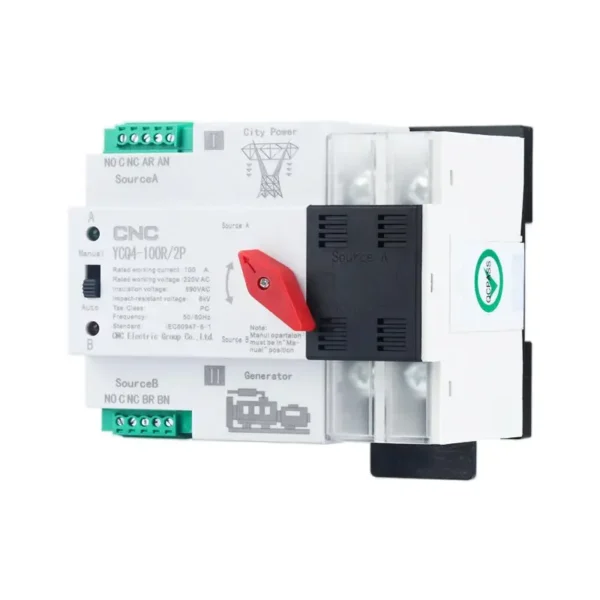

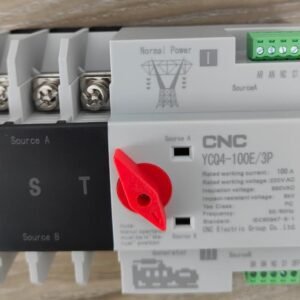

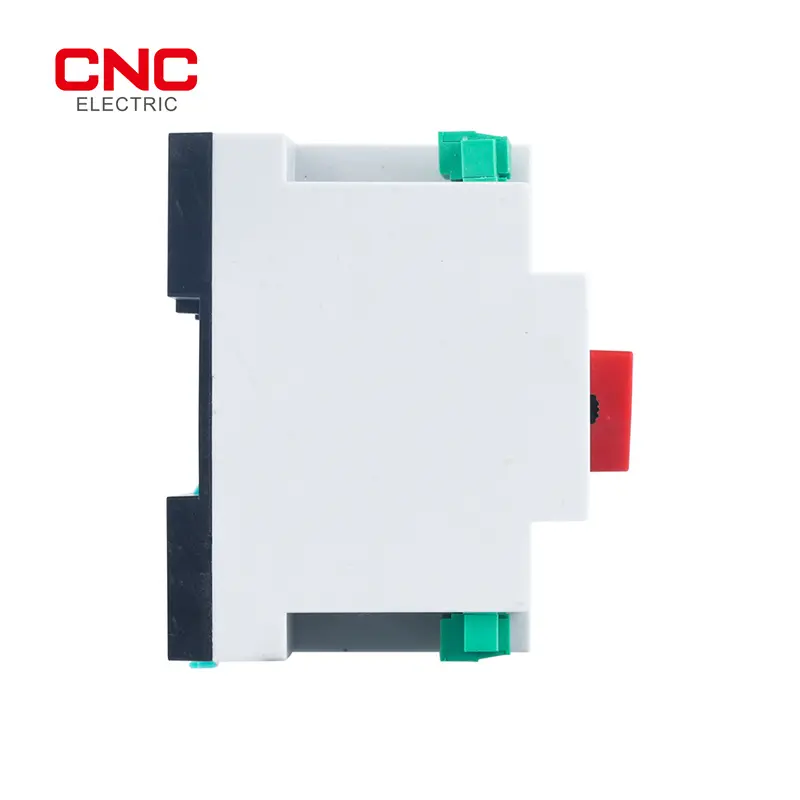

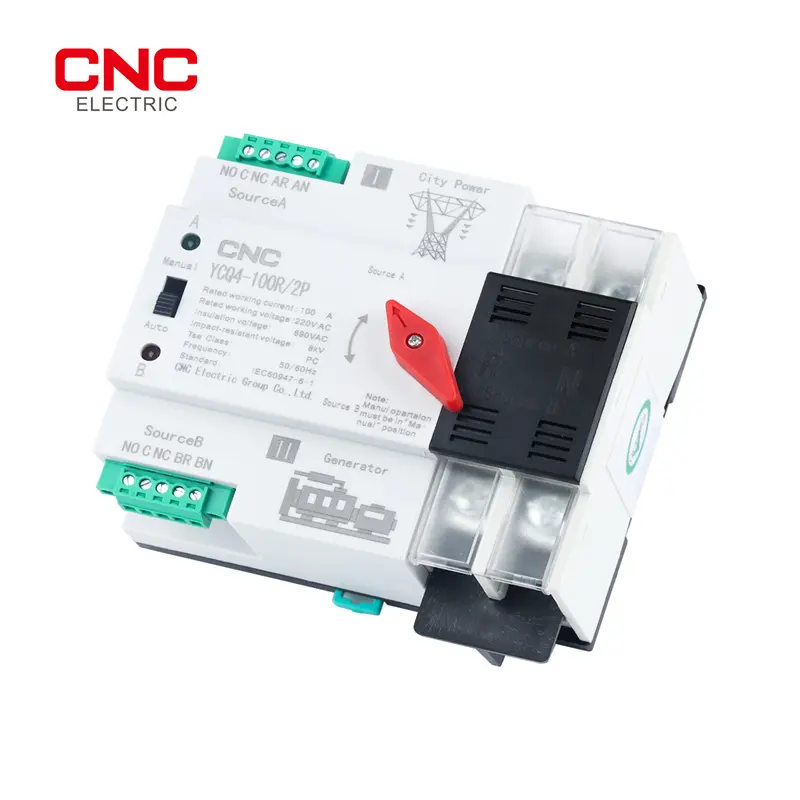

YCQ4E PC type Automatic Transfer Switch

Description

General

IEC60647-6(1999)/GBI14048.11-2002 “low voltage switchgear and control equipment multifunctional no.1:automatic transfer switches”

Control device: built in controller

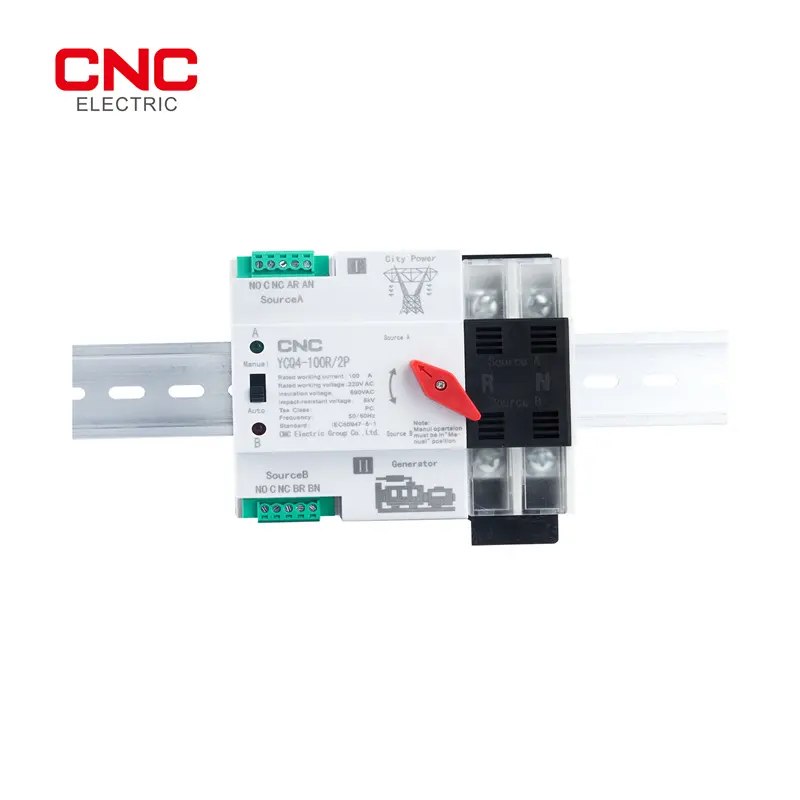

Product structure: no power off, guide rail type, high current, small volume, two-stage type, simple structure, ATS integration
Features: fast switching speed, low failure rate, convenient maintenance and reliable performance

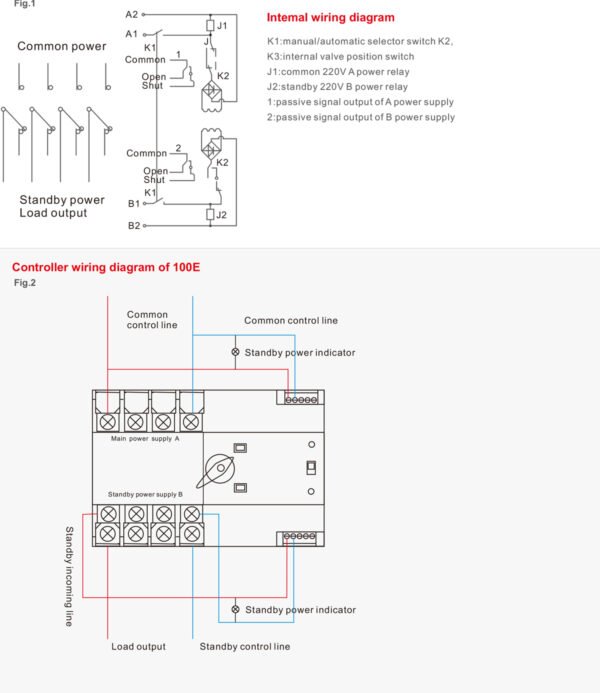

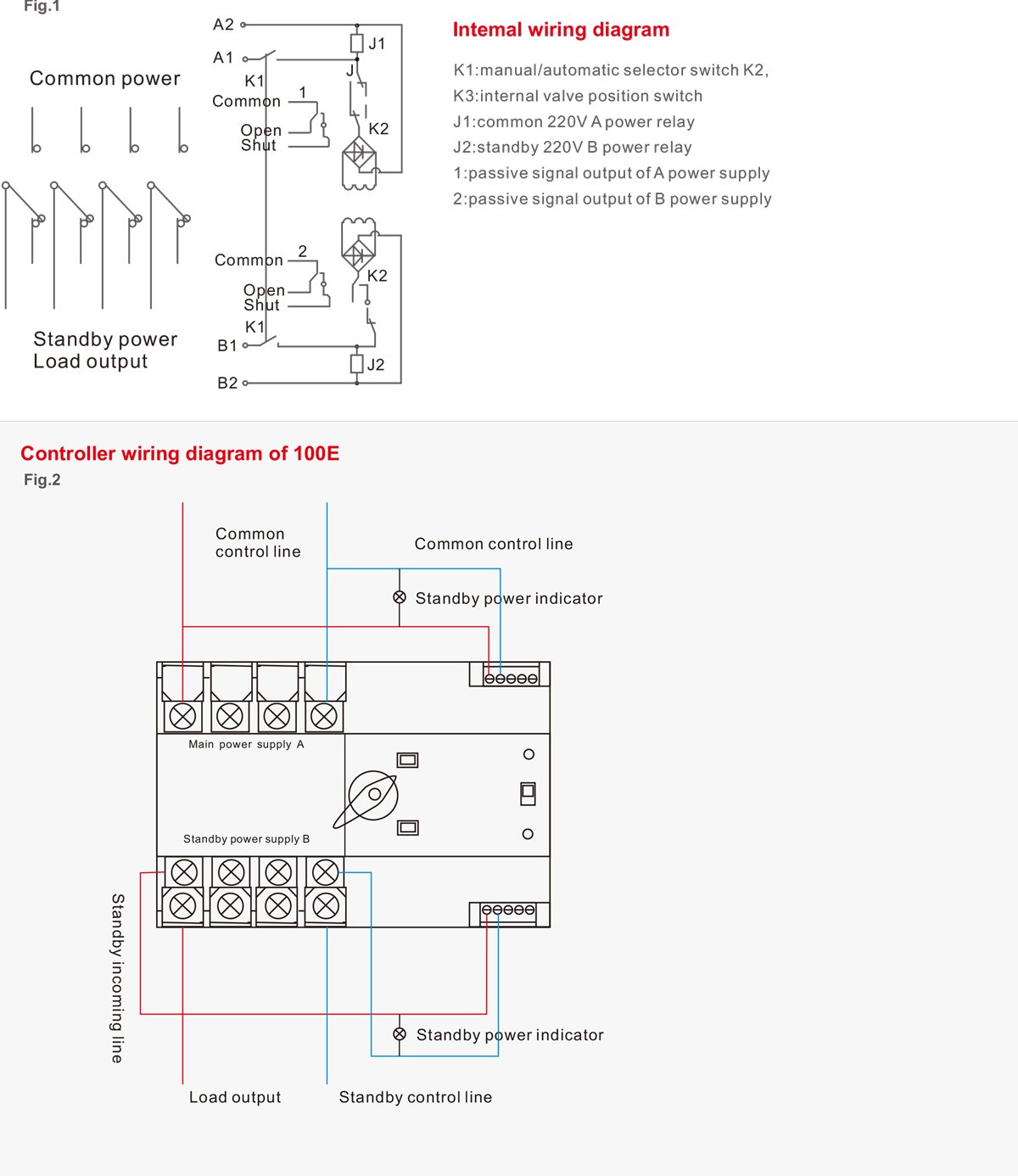

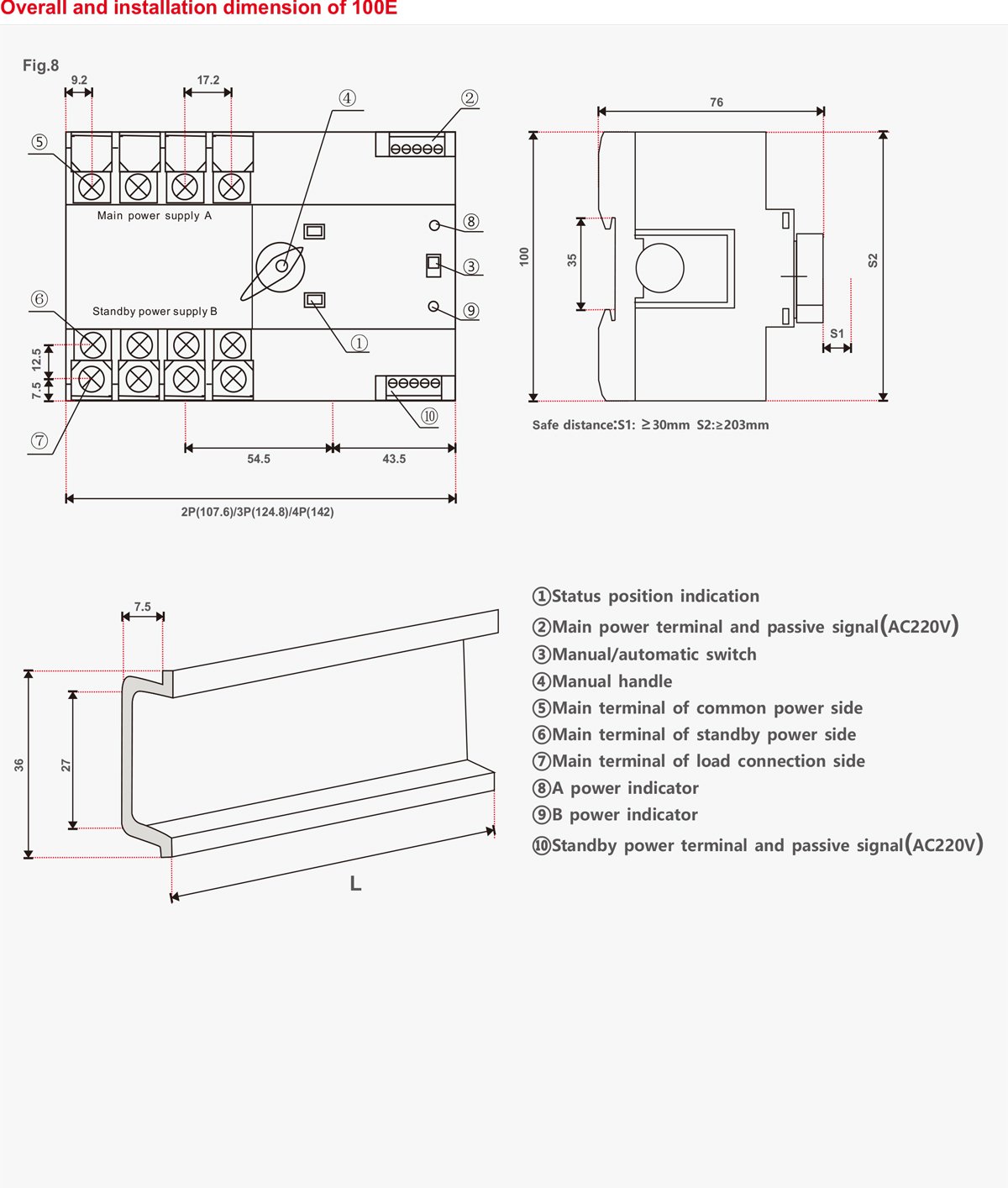

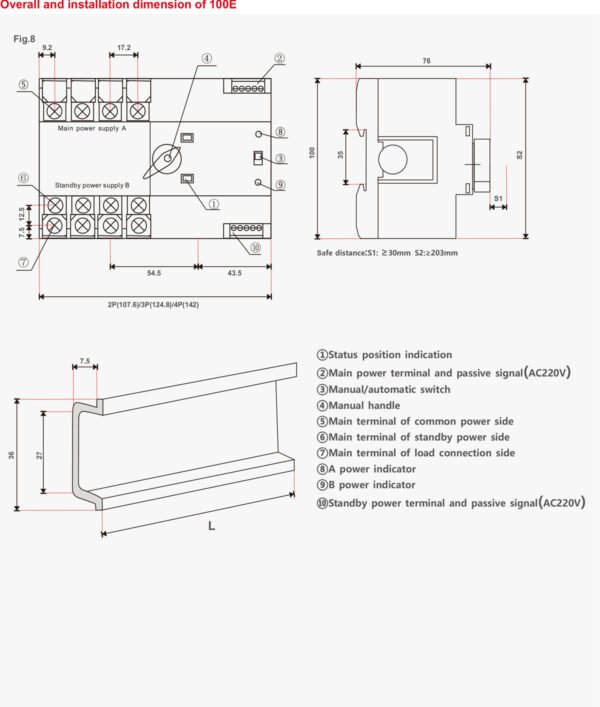

Wiring mode: front plate wiring

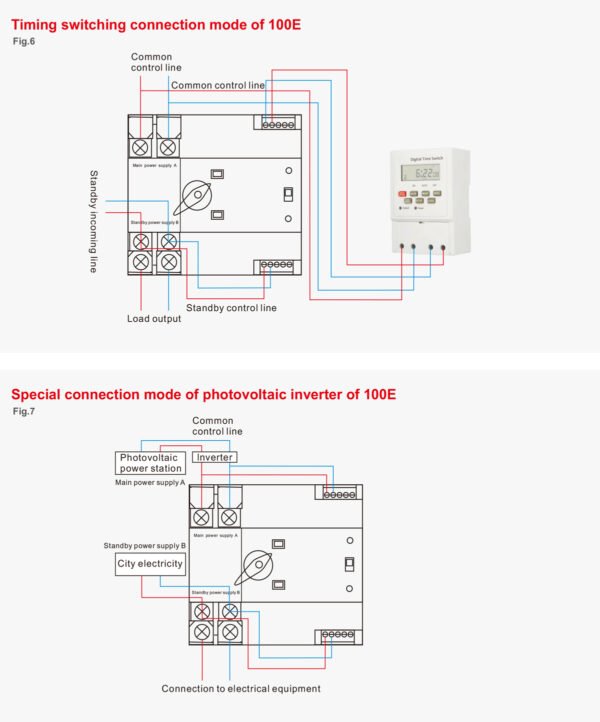

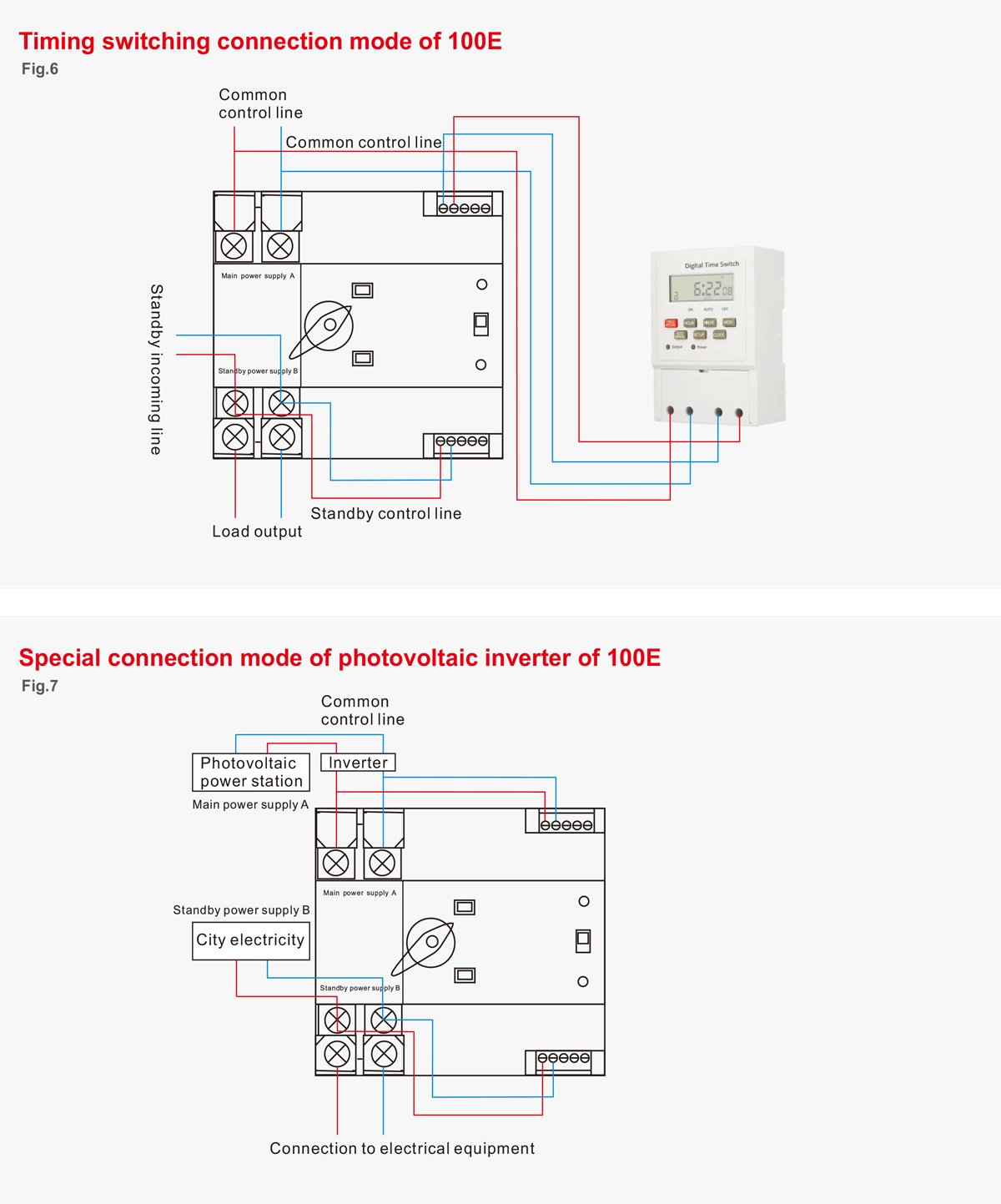

Conversion mode: power grid to power grid, power grid to generator, photovoltaic to urban power, automatic switching and self recovery
Product frame:100
Product current:10,16,20,25,32,40,50,63,80,100A
Product classification: direct load type

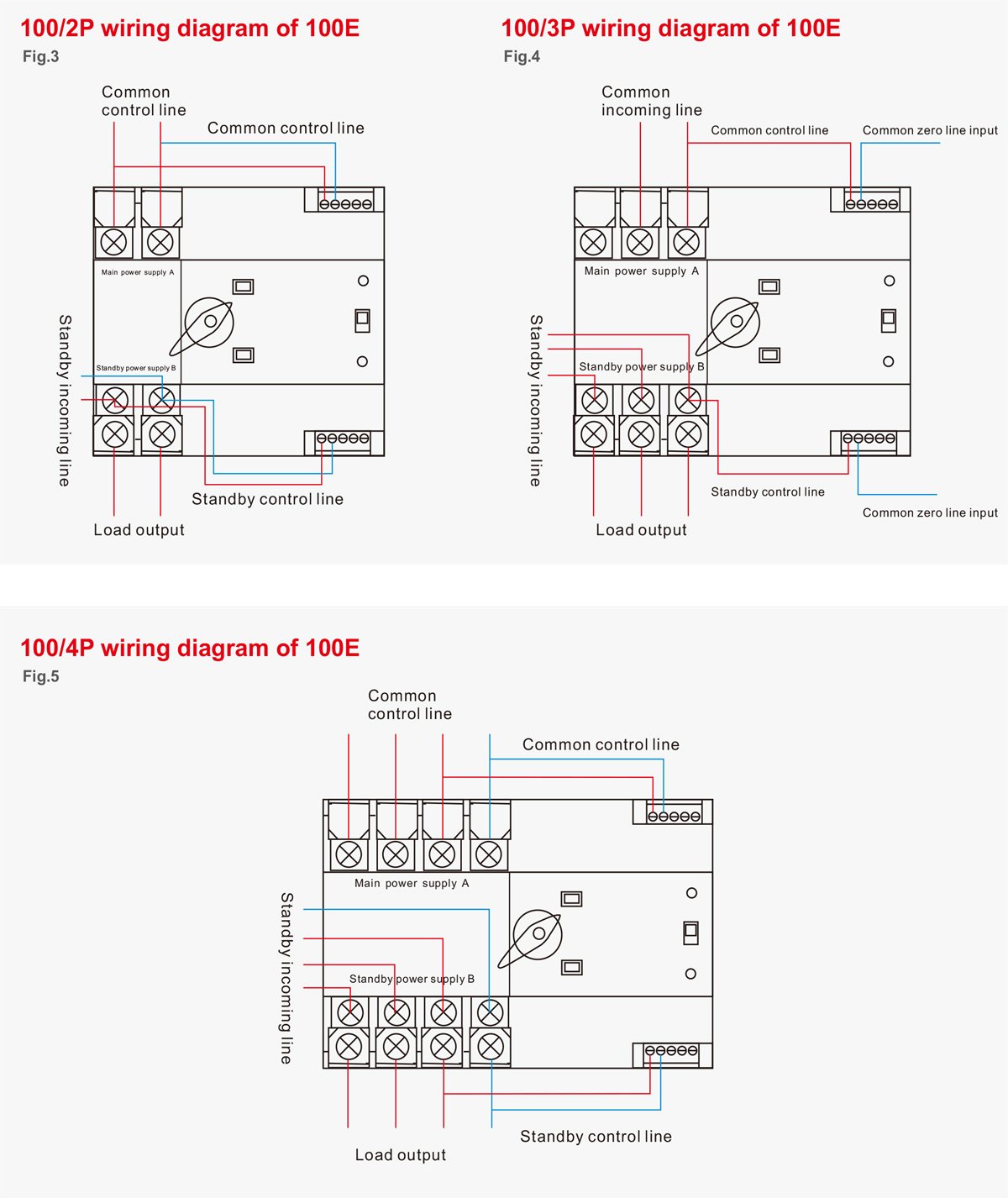

Pole No.:2,3,4
Standard: GB/T14048.11
A T S E:PC class
Switching time:0.008s/8ms

Normal operation time and installation conditions

Ambient air temperature
The maximum temperature shall not exceed 40°C the minimum temperature shall not be lower than -5°C,and the average temperature within 24 hours shall not be higher than 35 °C.
Altitude
The altitude of the installation site should not be higher than 2000m.
Atmosphere conditions
When the maximum temperature reaches 40°C,the relative humidity of the installation site should not exceed 50%;when the temperature is the minimum temperature -5℃,the relative humidity is higher, for example, the temperature is 25℃, and the relative humidity is 90%.Due to the temperature change, special measures should be taken to deal with the occasional condensation on the surface of the product.
Pollution grade
The pollution grade of ATS conforms to grade 3 specified in GB/T14048.11.
Installation category
The installation type of ATS conforms to the category specified in GB/T14048.11.
