Description
General
The Changeover Switch can switch on, load and break the circuit under normal conditions, using as Switch Disconnectors
Standard: IEC 60947-3
Sale!

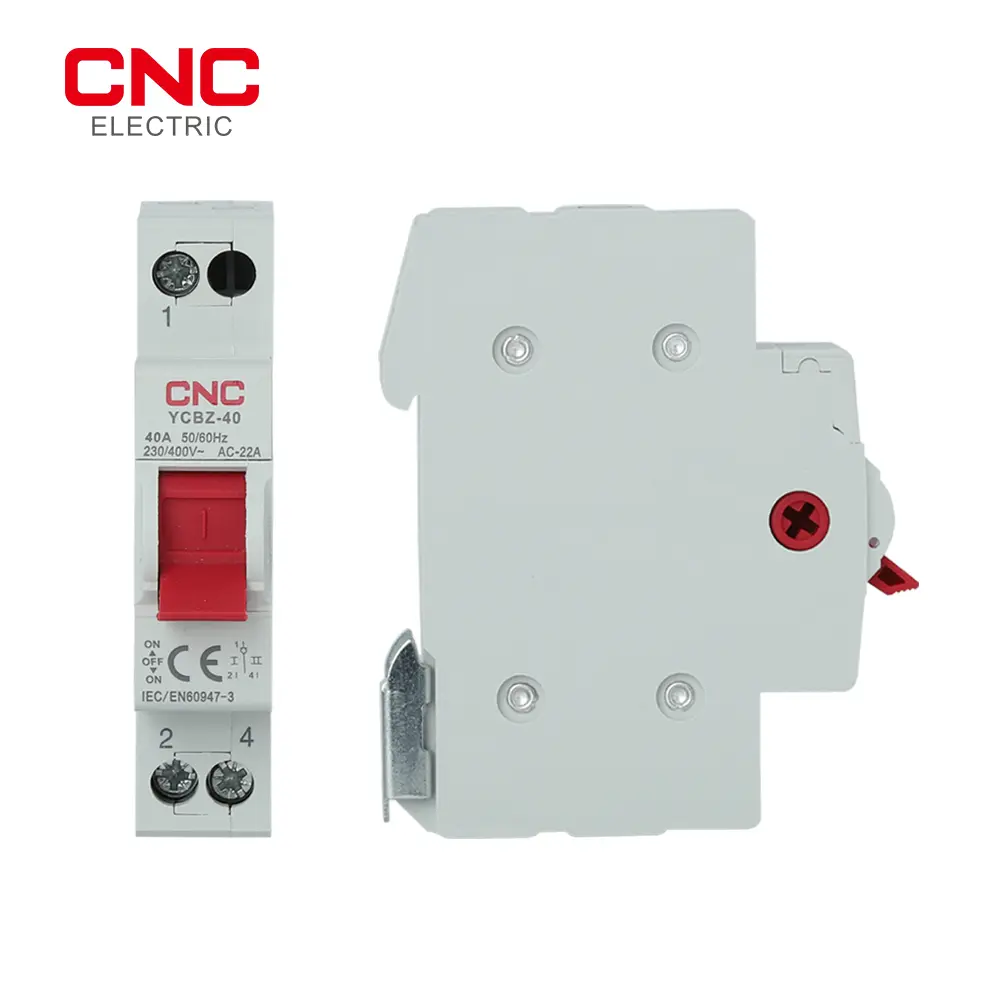

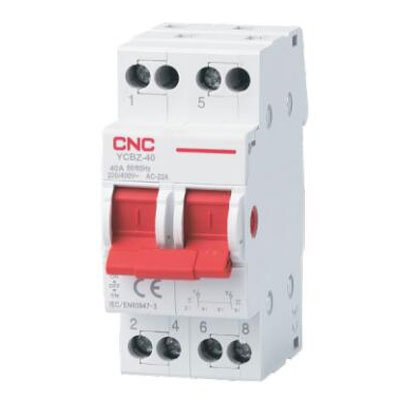

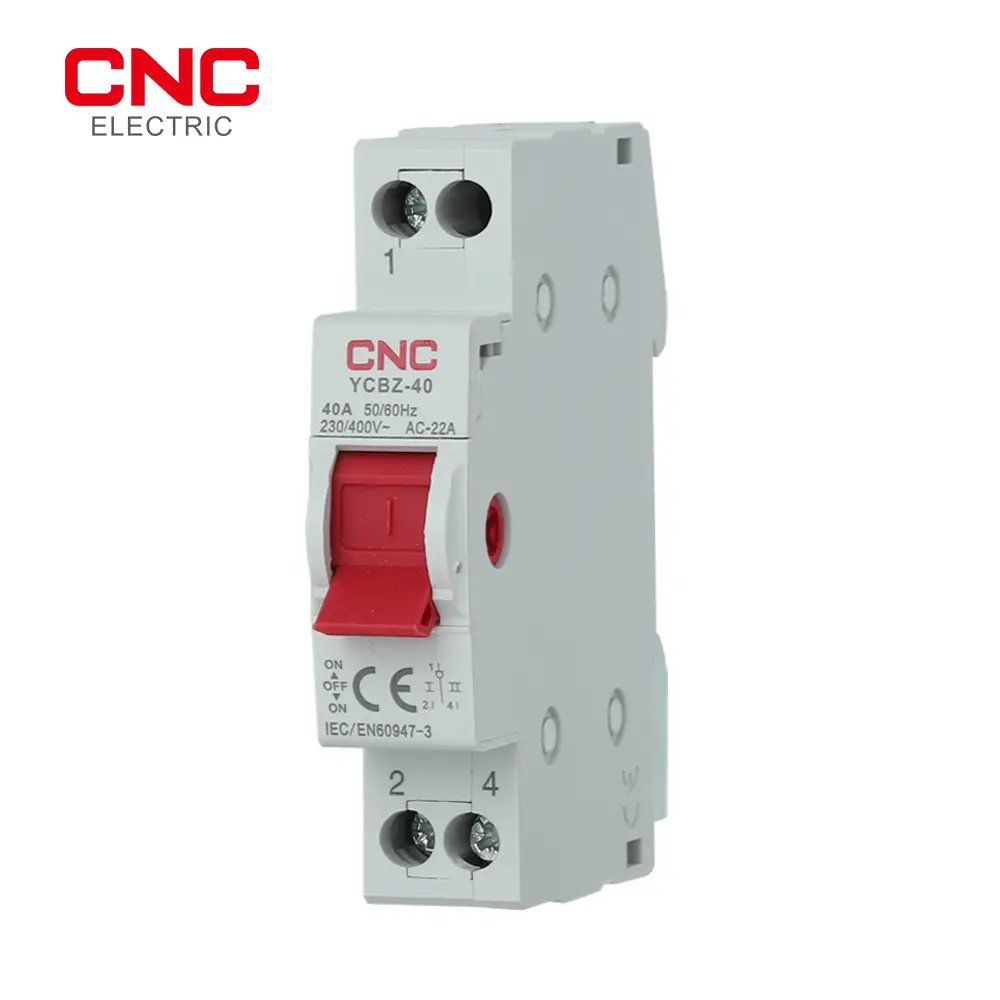

YCBZ-40 Change-over Switch
Original price was: 1,100.00৳ .1,020.00৳ Current price is: 1,020.00৳ .
Specifications
| Parameter | Data |
| Rated Voltage | 240/415V~ |
| Rated Current | 16,25,32,40A |
| Rated Frequency | 50/60Hz |

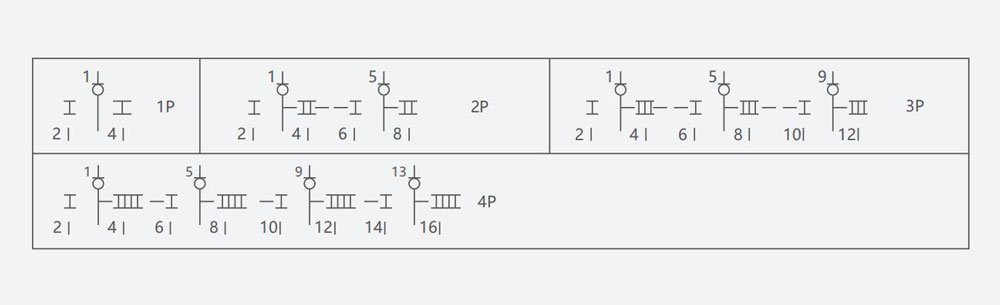

| Number of Poles | 1,2,3,4P |
| Contact form | 1-0-2 |
| Electrical Life | 1500 Cycles |
| Mechanical Life | 8500 Cycles |
| Protection degree | lp20 |
| Ambient Temperature | -5℃~40℃ |
| Terminal/Cable size | 10mm² |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
