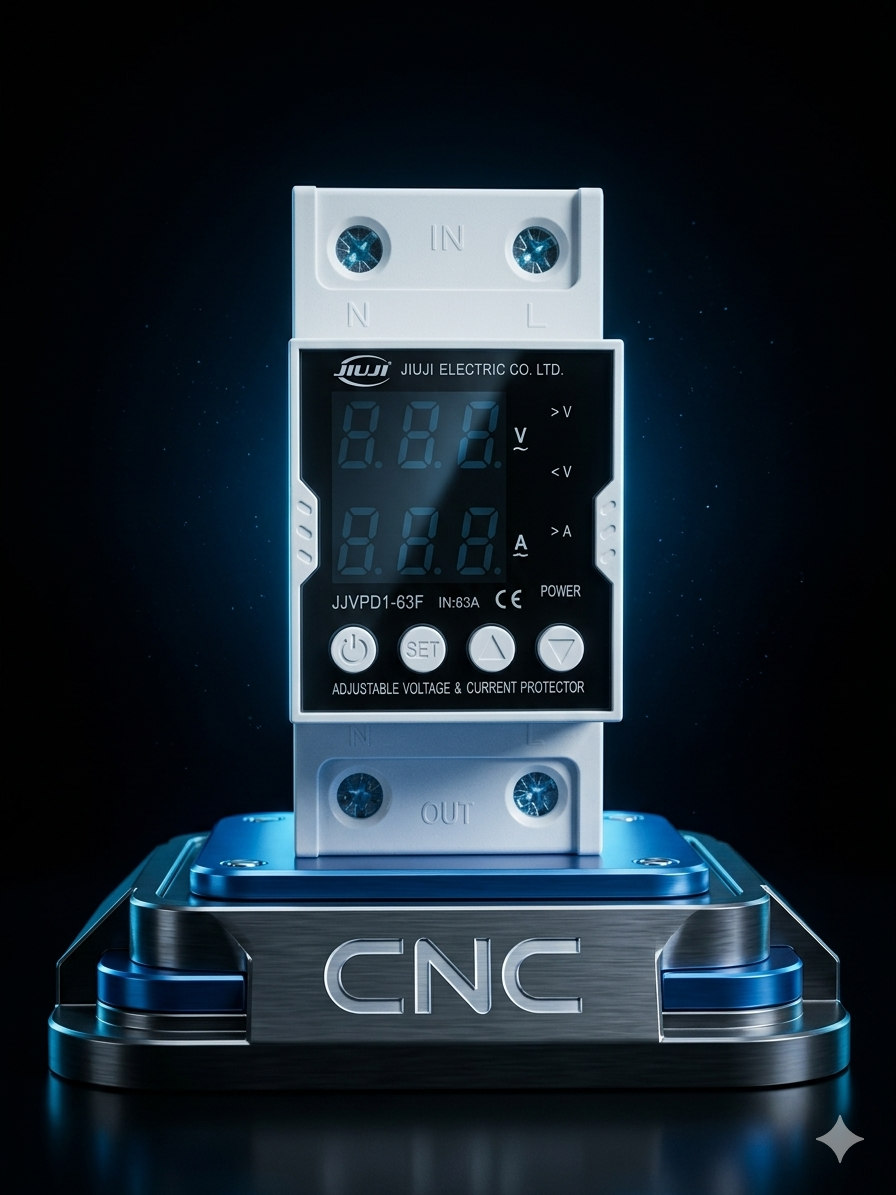

VOLTAGE PROTECTOR WITH OVERLOAD with Metering

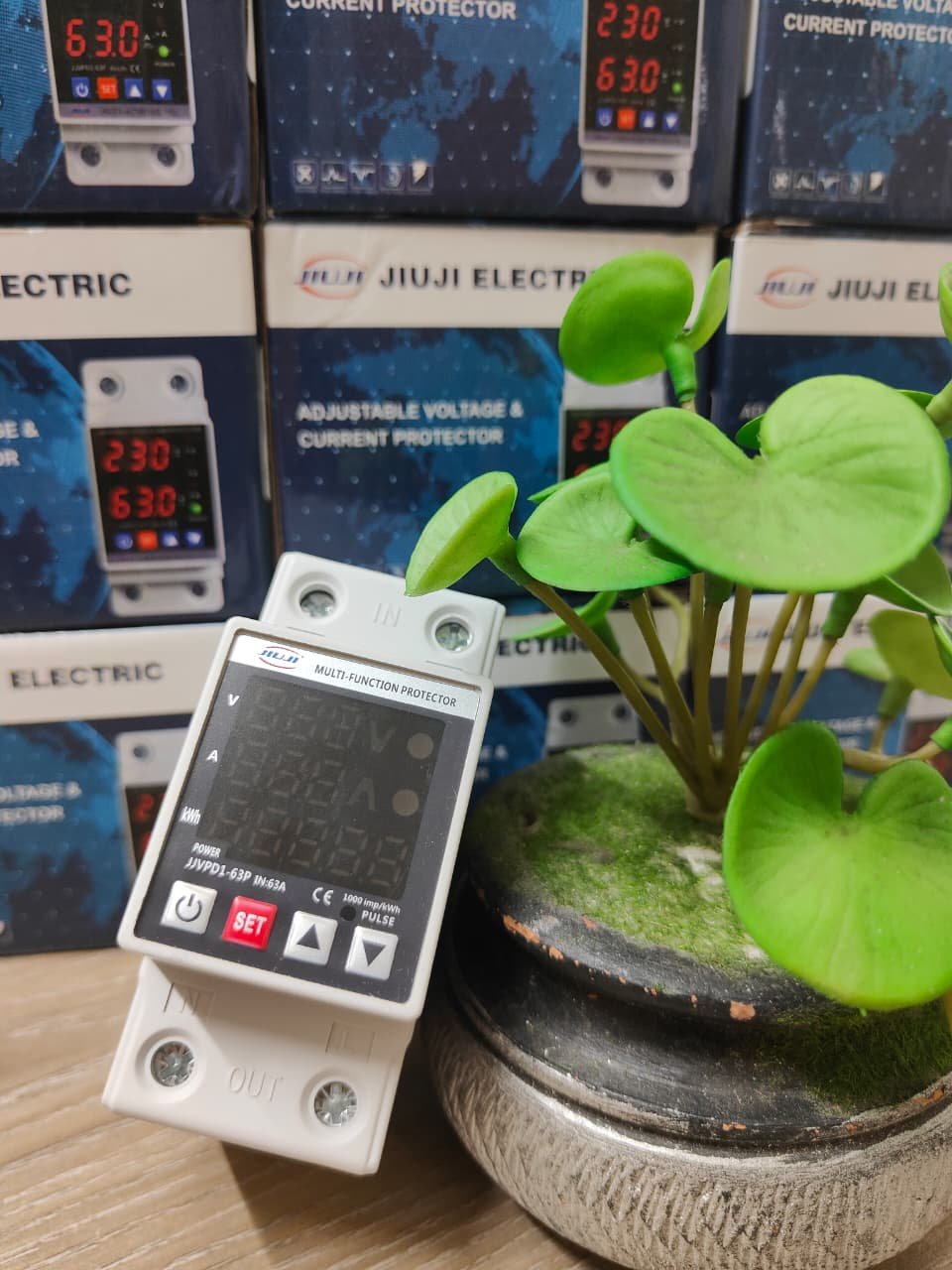

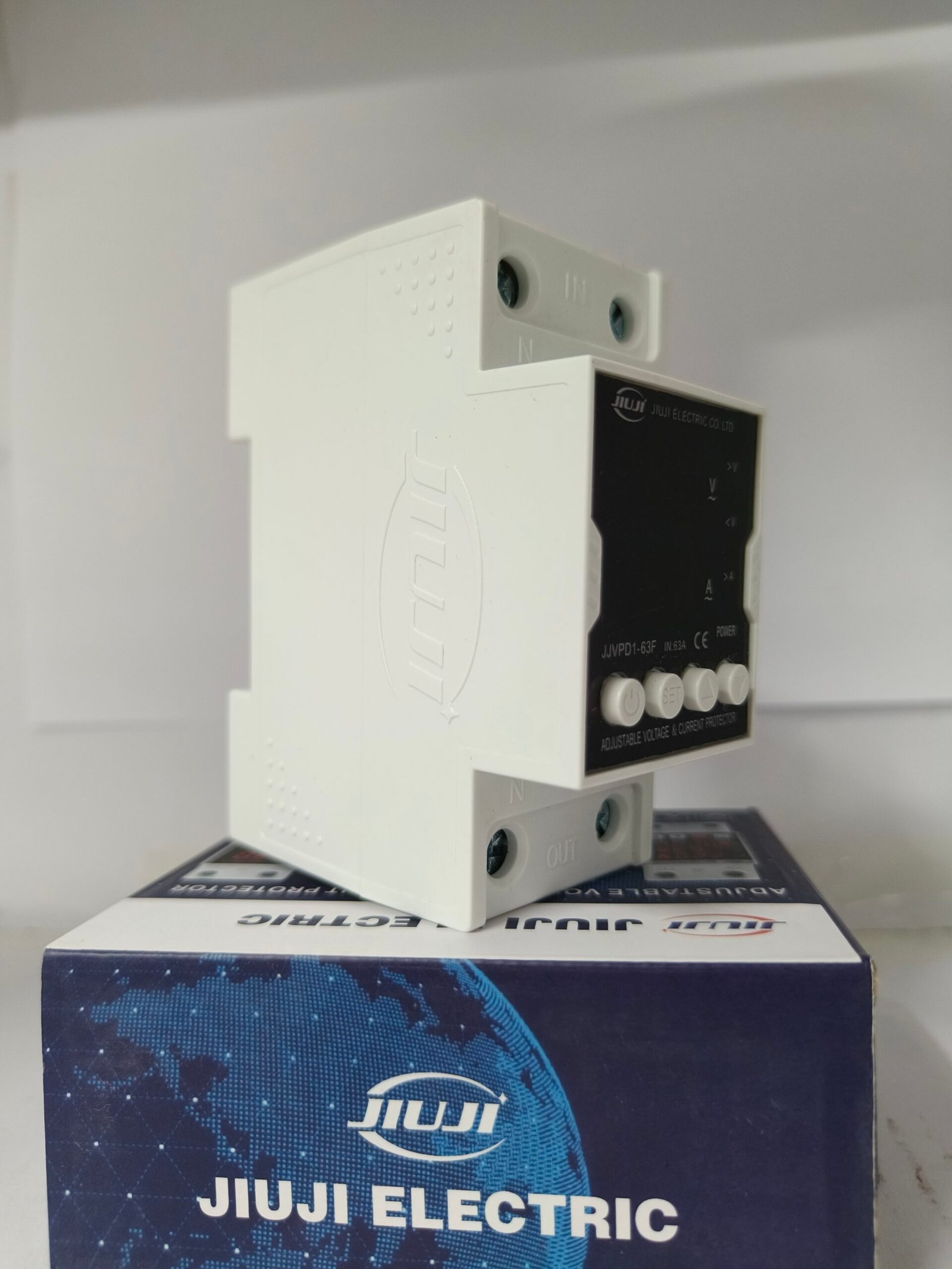

VOLTAGE PROTECTOR WITH OVERLOAD with Metering - Image 2

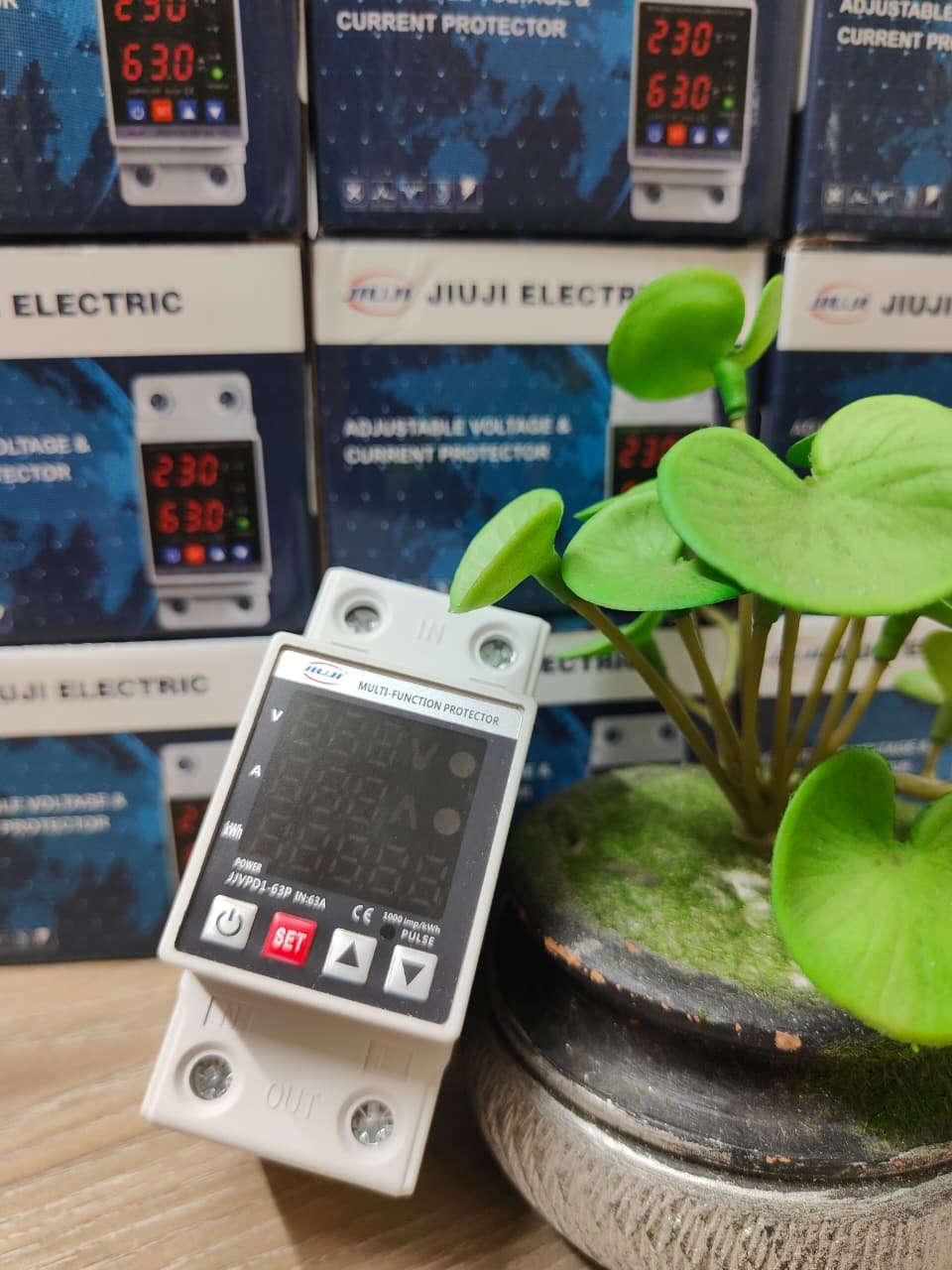

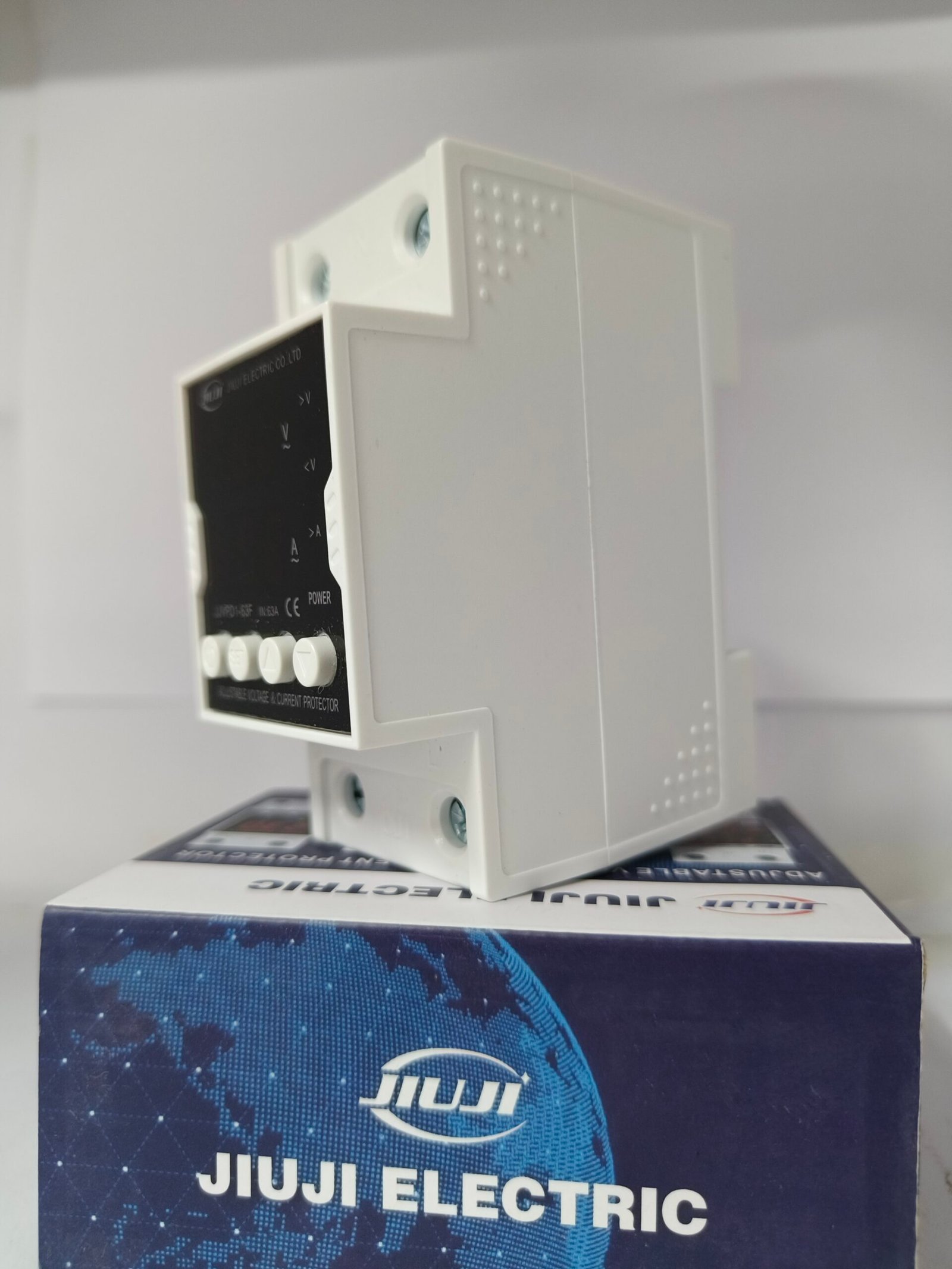

VOLTAGE PROTECTOR WITH OVERLOAD with Metering - Image 3

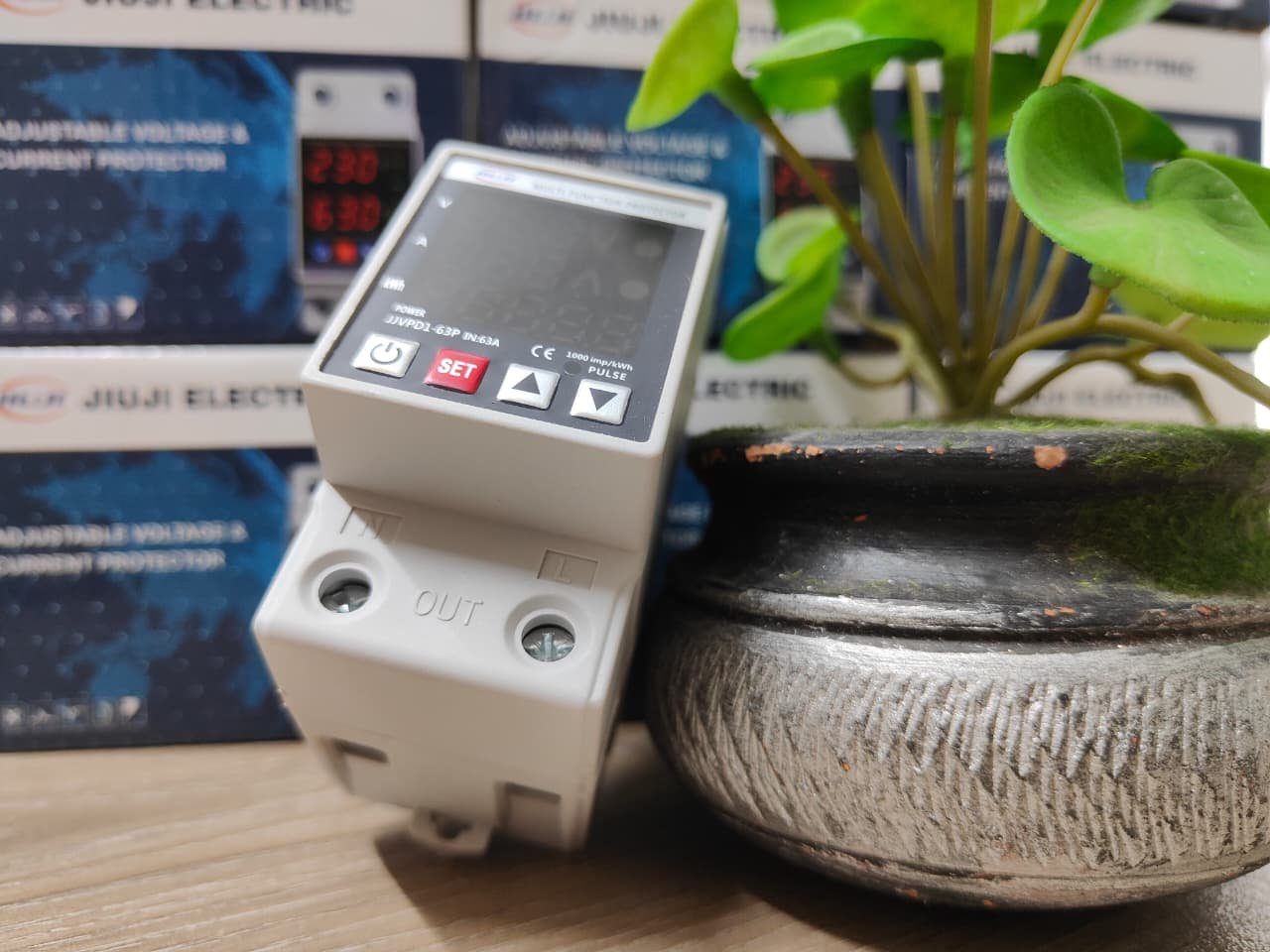

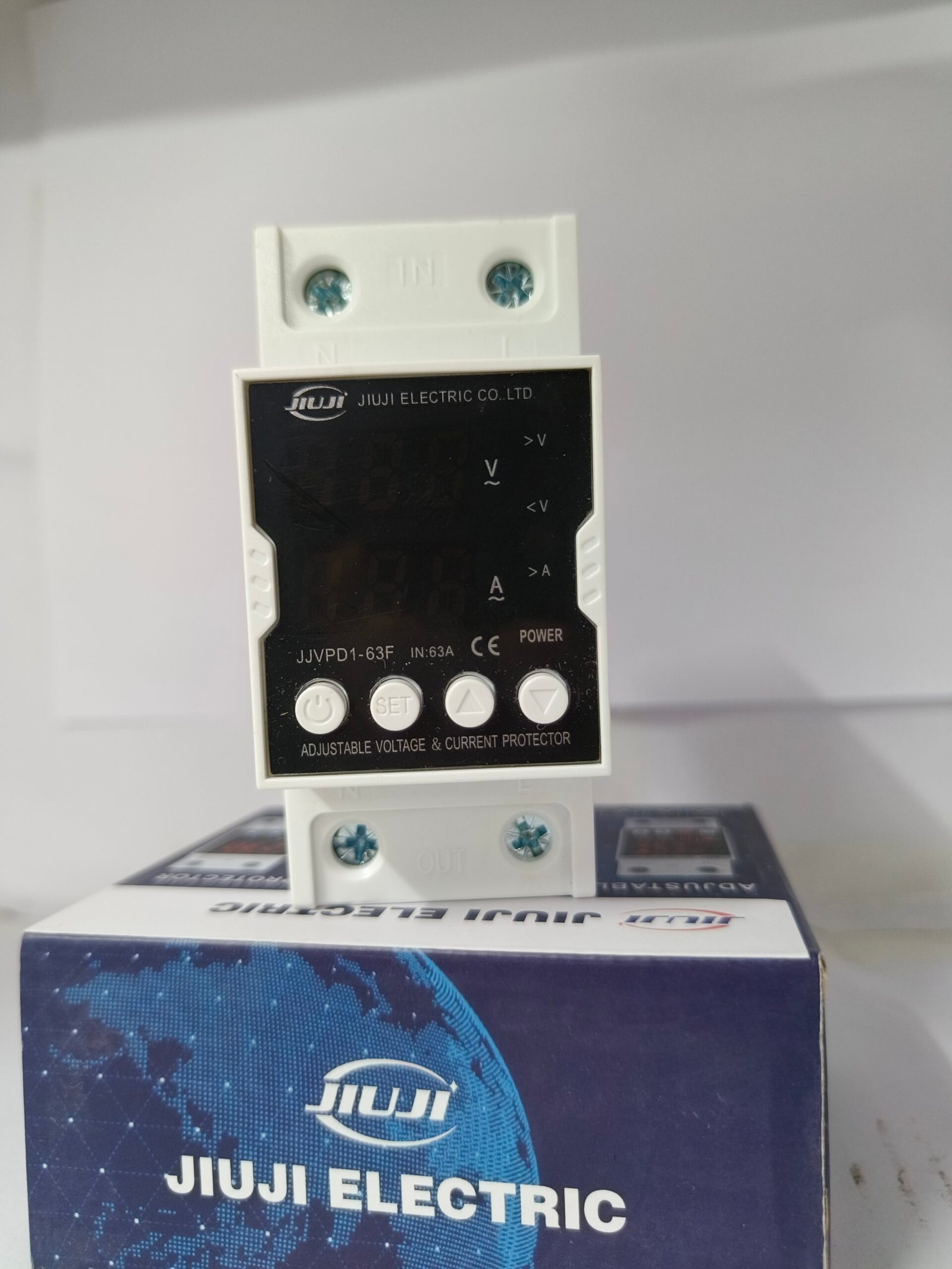

VOLTAGE PROTECTOR WITH OVERLOAD with Metering - Image 4

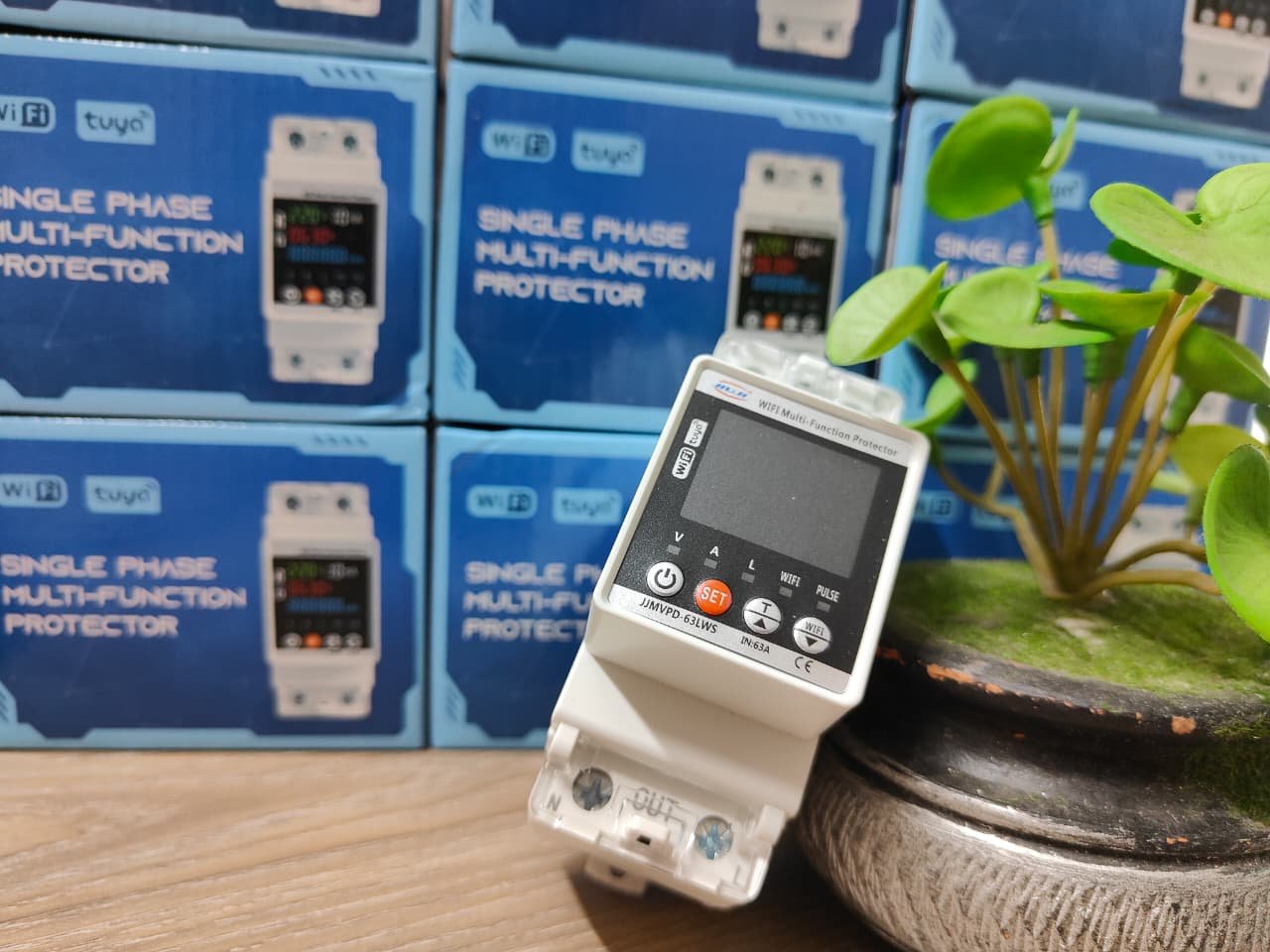

VOLTAGE PROTECTOR WITH OVERLOAD with Metering - Image 5

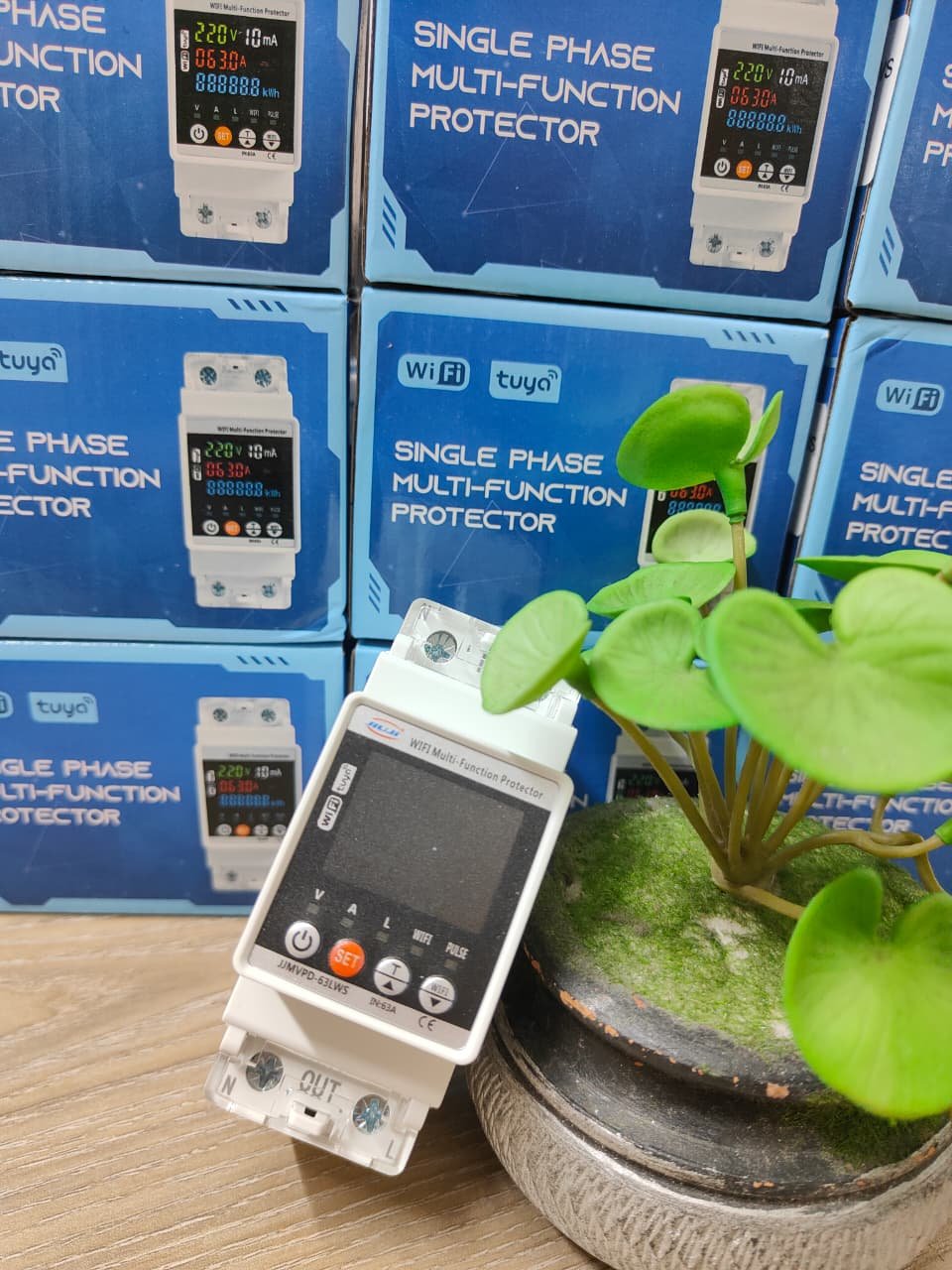

VOLTAGE PROTECTOR WITH OVERLOAD with Metering - Image 6
VOLTAGE PROTECTOR WITH OVERLOAD with Metering - Image 7

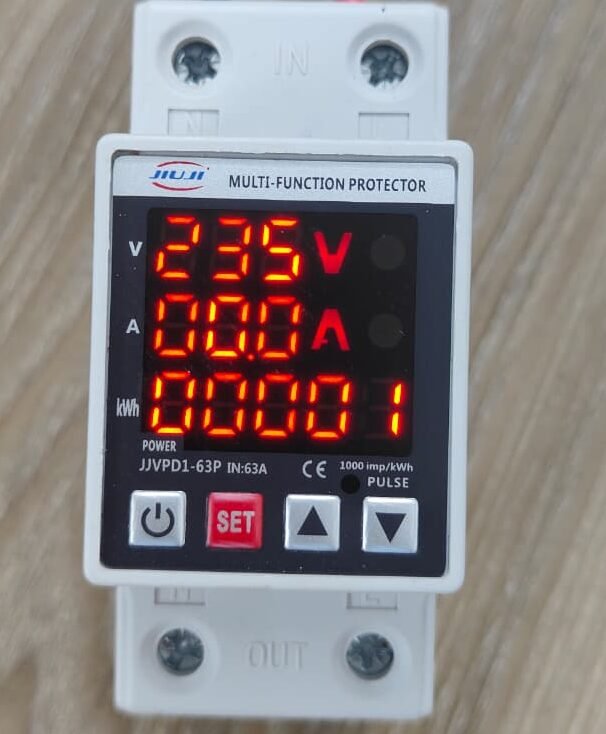

VOLTAGE PROTECTOR WITH OVERLOAD with Metering

Original price was: 1,300.00৳ .Current price is: 1,150.00৳ .

Technical data

Rated Working Voltage: 140-300 AC
Rated Frequency: 50/60HZ
Rated Working Current: 63A
Meter: Kwh
Over-voltage Protection Value: AC230V-AC300V
Under-voltage Protection Value: AC100V-AC220V
Voltage Power Off Time: 1-400s
Overcurrent Protection Value: 1-63A
Overcurrent Power Off Time: 1-30s
Recover time(Starting Delay Time):1-400s
Own Power Consumption: <2W Pollution Level 2 Class Rated Insulation Voltage: 400V Output Contact: 1NO Protection: lP20 Pollution: 3 Electrical Life: 100000 times Mechanical Life: 1000000 times Altitude: <2000m Operating Temperature: -5°C~40°C Relative Humidity: 50% at 40°C(non-condensing) Storage Temperature: -40°C~55°C Installation: 35mm DIN rail

Category: Tag:

Description

General

Voltage and current display relay is a microprocessor-based voltage monitoring device for single-phase AC networks to protect electrical equipment from surge voltage. The device analyzes the main voltage and displays its current value on a digital indicator. Load is switched by electromagnetic relay. The user can set the current voltage value and delay time through the button. The value is stored in non-volatile memory. Aluminum wires and copper wires can be used for connection.

Application

Voltage and current display relay used in administrative, industrial and residential buildings and has the function of protecting single-phase lines:

Under voltage protection
Overvoltage protection
Working under voltmeter mode
Overcurrent protection
Metering
