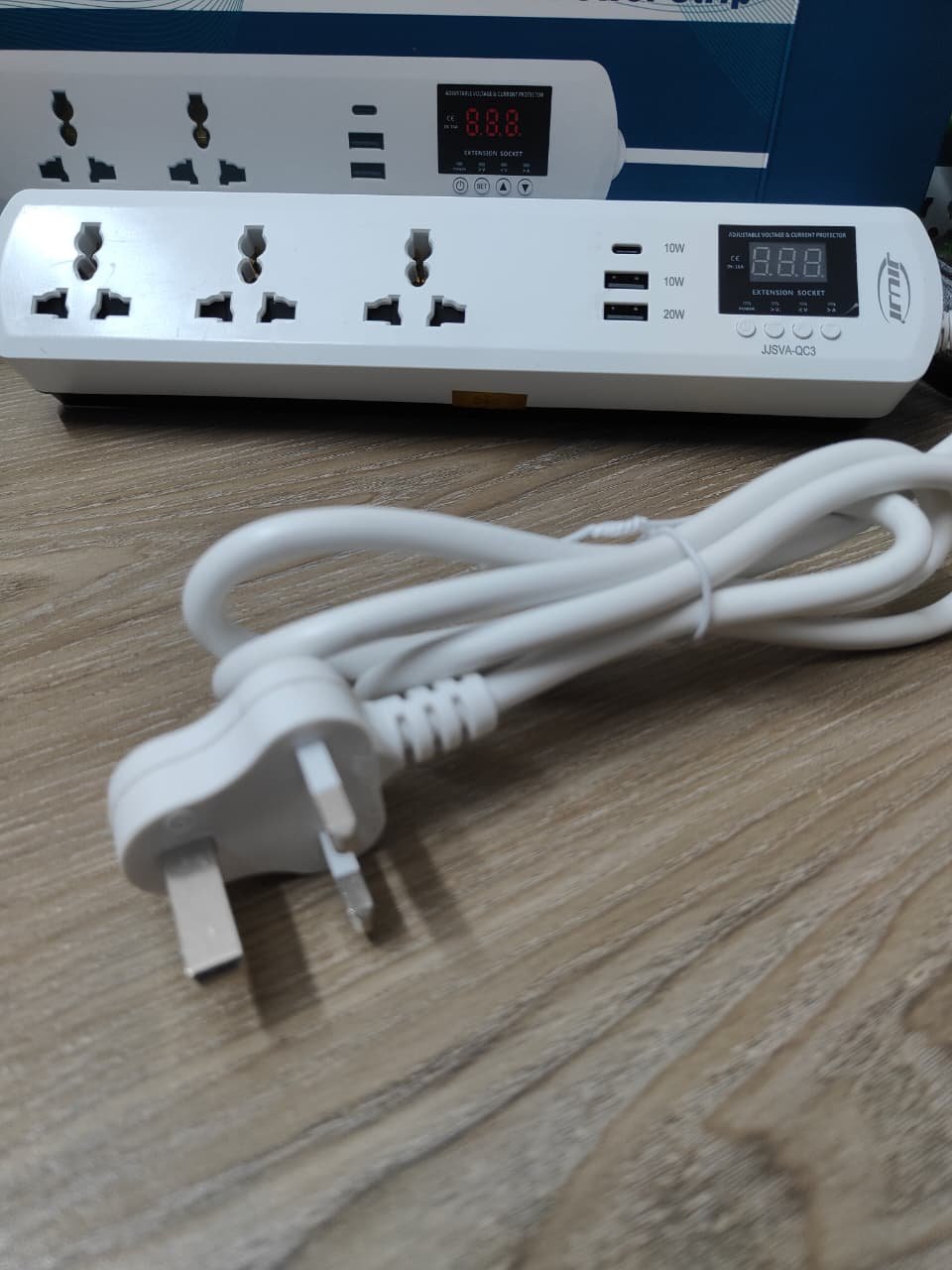

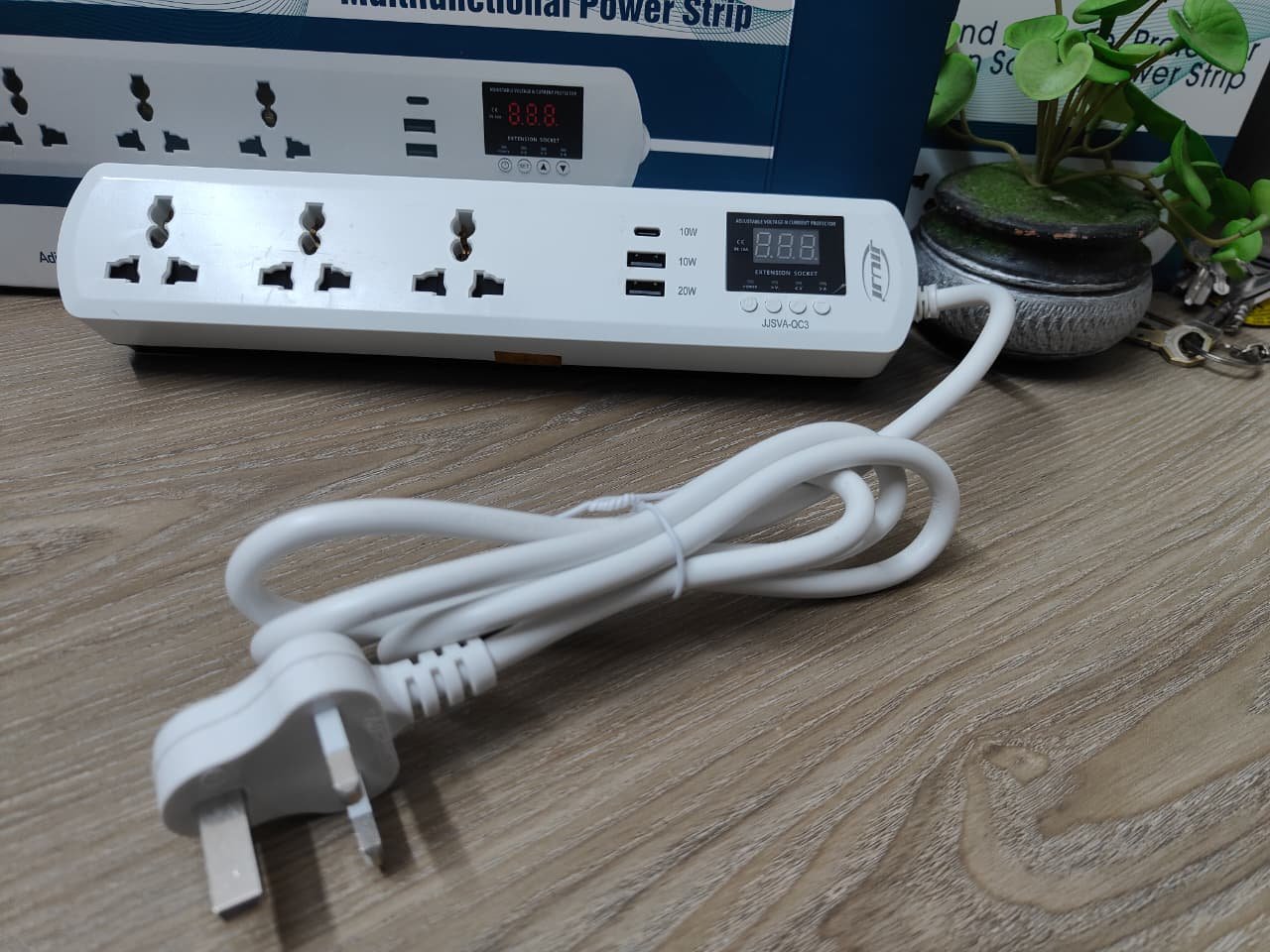

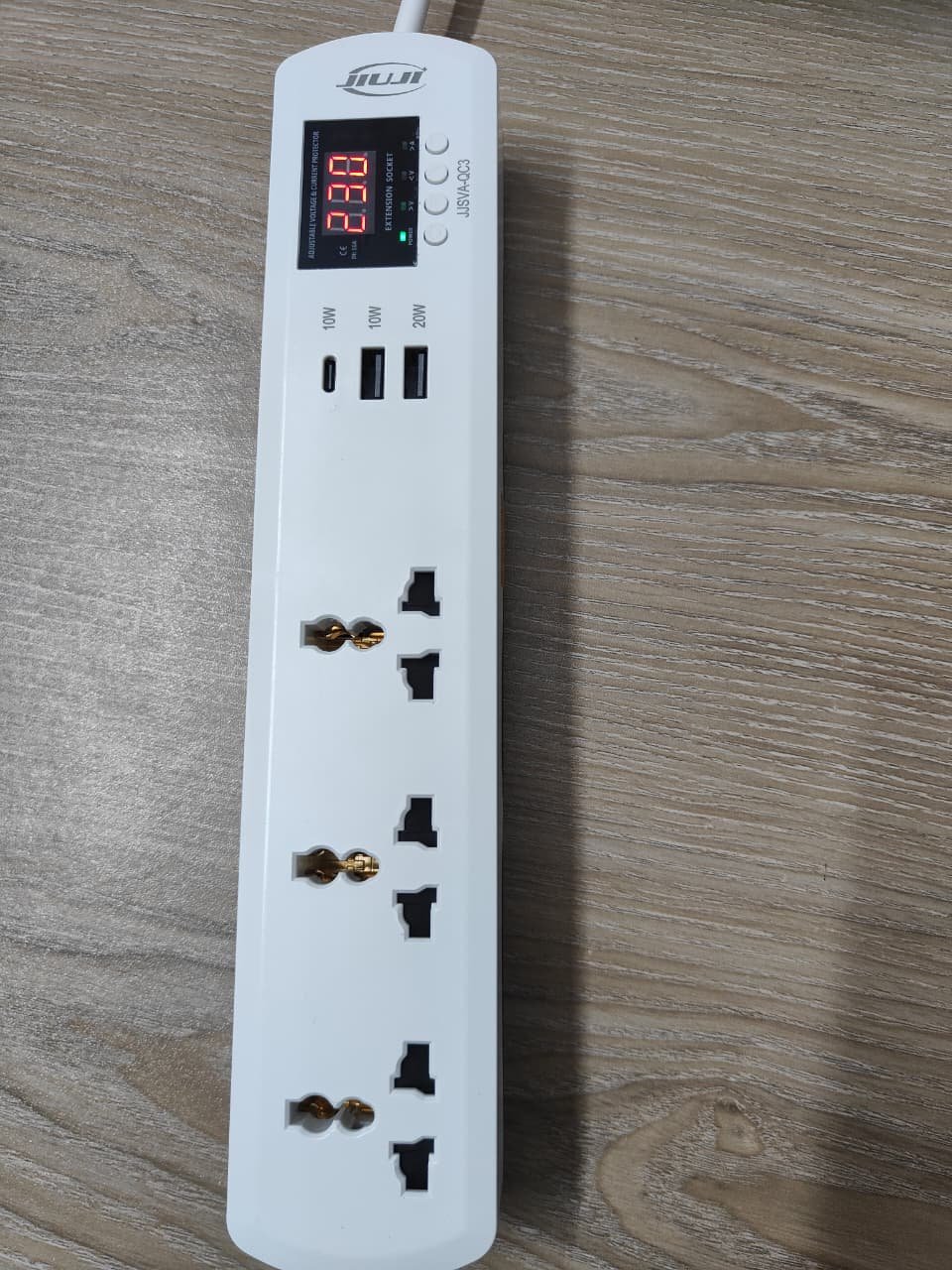

Extension Multi Socket With USB(Voltage & Current Protection)

Protection Specification

Function Technical Parameter

Input Voltage: AC 140-300V

Over-voltage Protection Value:230-300v Default 270v

Under-voltage Protection Value:140-210v Default 170v

Over-current Protection Value:16A:1-16A Default 16A

Recovery Delay Time:1-500s Default 30s

Continuous Over Current Faults Times

Power Consumption: <2W Boundary Dimendion: 280x55x42MM Power-on Delay Time: 1-500s Default 10s Over-voltage Recovery Value: 225-295v Default 265v Under-voltage Recovery Value: 145-215v Default 175v Over-current Recovery Value: 0. 5-15. 5A Action Time: 0. 1-30s Default Is 1-20Times Default Off Electrical And Mechanical Life: >100000cycles

Socket Type: Universal, UK, EU, US

Cable

H05VV-F,

3*1.5MM2, FULL Copper

WATT

MAX: 3200 W

USB Charging Power:

USB port 1: 20 watt
USB port 2: 10 watt
USB port 3: 10 watt
